The primary choice for secondary areas - the perfect problem solver for the contractor

  • IP 65 - protection against dust & water, making it an ideal fitting for indoor and outdoor applications
  • IK 10 rating resists impacts of up to 20 joules ensuring a high level of protection for public circulation areas
  • Clean, smooth aesthetic design reduces dust and dirt accumulation and ensures easy cleaning and lowers maintenance requirements
  • Fácil instalación con ahorro de tiempo y dinero
  • Additional options (wired sensor, wired corridor function, E3D emergency and bluetooth basicDIM) are available through myProduct
  • Self-contained emergency luminaires rely on long-lasting batteries. The high-tech lithium iron phosphate battery used is robust and comes with a three-year guarantee, giving users peace of mind (for further information see respective datasheet).

Materials and Finish

Body and bezel: polycarbonate, white
Diffuser: polycarbonate, white, diffuse
Screws: steel, zinc plated
Silicone free

Installation and Mounting

Suitable for installation directly to walls or ceilings, indoors or outdoors. Loop-in, loop-out is possible for cables up to 2.5mm². BESA compatible.

Specification

To specify state:

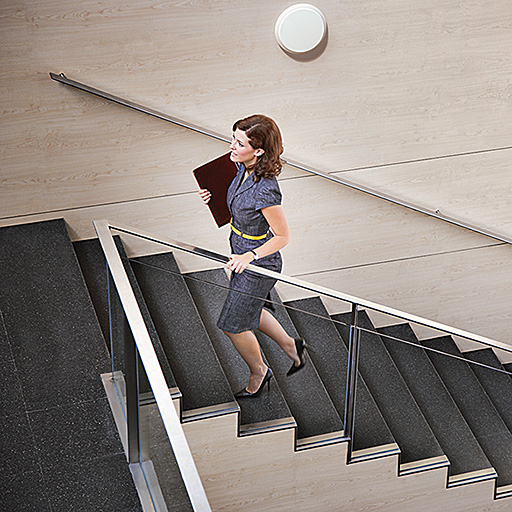

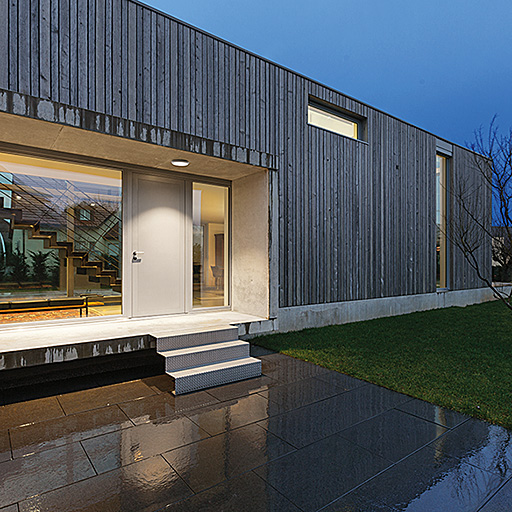

Very slim, functional and well protected luminaire for installation on walls and ceilings, indoors and outdoors (corridors, stairwells, storage rooms, underpasses, terraces, balconies, entrance areas). The slim shape with a height of only 58mm allows more space in rooms with low ceiling heights. Available in two designs, round (Ø307mm) and square (277x277mm), in a white finish, each with 3 different lumen packages, 1000lm, 1400lm and 2000lm, in warm white (3000K) and cool white (4000K), CRI 80. Diffuse lighting distribution, IP65 and IK10 rated, ensuring a high level of protection for e.g. public circulation areas. Efficacy of up to 120lm/W, ambient temperature: -15° to +35° ( Emergency versions: 0° to 35°). Lifetime: 50 000 hours L80, Electrical class II. Anti tamper screws as standard, a security bezel, offering additional security options for health care and educational applications, is available as an accessory. The emergency versions, E3 (3 hours manual test) and E3D (3 hours self/adressable test) come with a Lithium ION Battery with 3 levels of protection and 3 years warranty. Available also with DALI, basicDIM, Microwave Sensor (wired Master/Slave), bluetooth and mobile apps.
As Thorn Katona

  • New Product
New Product
LumExpress Product
eControl Product

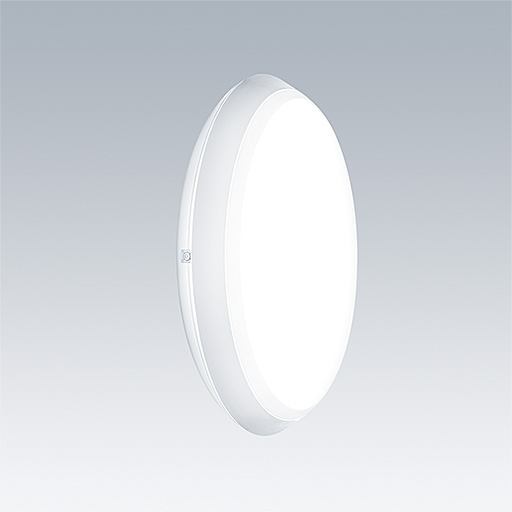

Katona Round

DescriptionLuminaire power (W)Luminaire output (lm)   TypeWt (kg)SAP Code
KAT RD 1000-830 HF8950LED0.9496631303
KAT RD 1000-840 HF81000LED0.9496629365
KAT RD 1400-830 HF121325LED0.9496631304
KAT RD 1400-840 HF121400LED0.9496629366
KAT RD 1400-840 HFL121400LED1.0496631354
KAT RD 2000-830 HF161850LED0.9896631305
KAT RD 2000-840 HF161950LED0.9896629367

Katona Round, emergency

DescriptionLuminaire power (W)Luminaire output (lm)   TypeWt (kg)SAP Code
KAT RD 1000-830 HF E38950LED1.0896631315
KAT RD 1000-840 HF E381000LED1.0896631309
KAT RD 1400-830 HF E3121325LED1.0896631314
KAT RD 1400-840 HF E3121400LED1.0896630358
KAT RD 1400-840 HFL E3121400LED1.1896631334
KAT RD 2000-830 HF E3161850LED1.1296631316
KAT RD 2000-840 HF E3161950LED1.1296631310
KAT RD 2000-840 HF E3D161950LED1.1496631346

Katona Round, dimmable

DescriptionLuminaire power (W)Luminaire output (lm)   TypeWt (kg)SAP Code
KAT RD 1000-830 HFI8950LED1.0496631324
KAT RD 1000-840 HFI81000LED1.1096631747
KAT RD 1400-840 BC121400LED1.0996631387
KAT RD 2000-840 HFI161950LED1.0596631479

Katona Round, dimmable, emergency

DescriptionLuminaire power (W)Luminaire output (lm)   TypeWt (kg)SAP Code
KAT RD 1000-830 HFI E38950LED1.1896631325
KAT RD 2000-840 HFI E3161950LED1.1896631854

Katona Round, sensor

DescriptionLuminaire power (W)Luminaire output (lm)   TypeWt (kg)SAP Code
KAT RD 2000-830 MWS161850LED1.0296631341
KAT RD 2000-840 MWS161950LED1.1096631745

Katona Round, sensor, emergency

DescriptionLuminaire power (W)Luminaire output (lm)   TypeWt (kg)SAP Code
KAT RD 1000-830 MWS E38950LED1.1396631326

Katona Round, sensor, corridor function

DescriptionLuminaire power (W)Luminaire output (lm)   TypeWt (kg)SAP Code
KAT RD 1000-840 COR MWS8950LED1.0996631327

Katona Round, sensor, corridor function, emergency

DescriptionLuminaire power (W)Luminaire output (lm)   TypeWt (kg)SAP Code
KAT RD 1000-840 COR MWS E381000LED1.3196631328

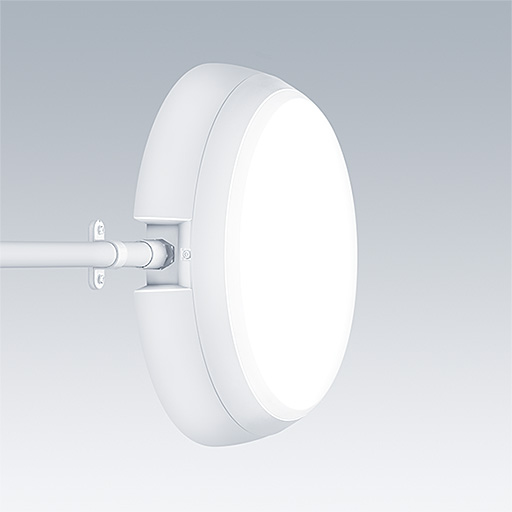

Katona Round, side entry

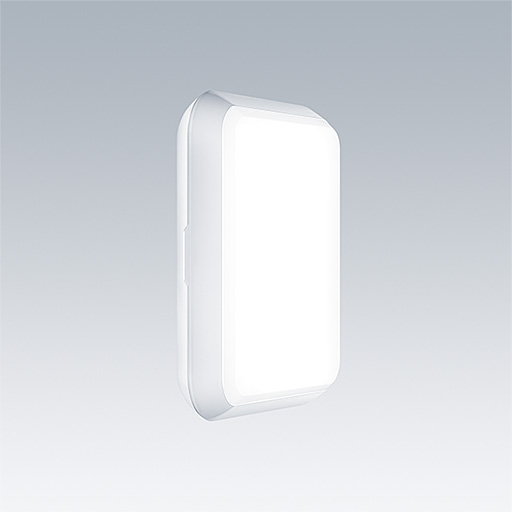

Katona Square

DescriptionLuminaire power (W)Luminaire output (lm)   TypeWt (kg)SAP Code
KAT SQ 1000-830 HF8950LED0.9696631306
KAT SQ 1000-840 HF81000LED0.9696629368
KAT SQ 1400-830 HF121325LED0.9696631307
KAT SQ 1400-840 HF121400LED0.9696631331
KAT SQ 1400-840 HFL121400LED1.0596631333
KAT SQ 2000-830 HF161850LED0.9996631308
KAT SQ 2000-840 HF161950LED0.9996629370

Katona Square, emergency

DescriptionLuminaire power (W)Luminaire output (lm)   TypeWt (kg)SAP Code
KAT SQ 1000-830 HF E38950LED1.1096631318
KAT SQ 1000-840 HF E381000LED1.1096631312
KAT SQ 1400-830 HF E3121325LED1.1096631317
KAT SQ 1400-840 HF E3121400LED1.1096631311
KAT SQ 2000-830 HF E3161850LED1.1396631319
KAT SQ 2000-840 HF E3161950LED1.1396631313

Katona Square, dimmable

DescriptionLuminaire power (W)Luminaire output (lm)   TypeWt (kg)SAP Code
KAT SQ 1000-830 HFI8950LED1.0696631321

Katona Square, dimmable, emergency

DescriptionLuminaire power (W)Luminaire output (lm)   TypeWt (kg)SAP Code
KAT SQ 1000-830 HFI E38950LED1.2096631320

Katona Square, sensor, corridor function, emergency

DescriptionLuminaire power (W)Luminaire output (lm)   TypeWt (kg)SAP Code
KAT SQ 1000-840 COR MWS E381000LED1.2396631355

Katona accessories

Description   Wt (kg)SAP Code
KAT RD SCC0.2096631347
KAT RD/SQ DS 5050.1096631348
