Chalice Pro / CHAL PRO LED2000-830 HF E3 RMB W6

96642364

Change configuration

  • Base: 96642364 — CHAL PRO LED2000-830 HF E3 RMB W6

Data Sheet

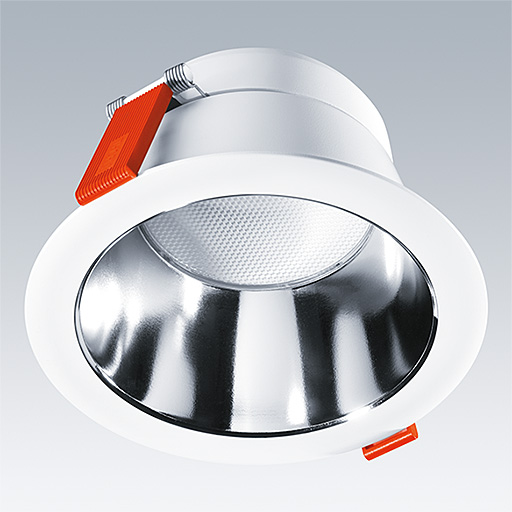

A recessed LED downlight. Remote fixed output control gear with 3 hour, manual test, emergency lighting circuit. IP54 (IP20 from above), Class I electrical, UGR<19. Body: aluminium, painted white (RAL 9016). Reflector: mirrorbrite. Suitable for mounting in ceiling thicknesses of 1-40mm in a Ø150mm cut-out. Complete with 3000K LED.

Dimensions: Ø172 x 94 mm
Total power: 18.2 W
Luminaire luminous flux: 1900 lm
Luminaire efficacy: 104 lm/W
Weight: 1.51 kg

Mode selection
  • Posición de la lámpara:STD - estándar
  • Fuente de luz:LED
  • Flujo luminoso de luminaria*:1900 lm
  • Total emergency luminous flux:250 lm
  • Rendimiento luminoso de las luminarias*:104 lm/W
  • Lamp efficacy:104 lm/W
  • Índice de reproducción de los colores mín.:80
  • Temperatura de color correlativa*:3000 Kelvin
  • Tolerancia del lugar del color (initial MacAdam)*:3
  • Vida útil nominal media*:50000h L90 para 25°C
  • Balasto:1x HF_ Tridonic LCI
  • Potencia de la luminaria*:18,2 W Lambda = 0,95
  • Charging Power:4 W
  • Control:FO
  • Categoría de mantenimiento:C - Reflector cerrado en parte superior
  • LED
  • CE
  • Einb_NDaeMat
  • 850°
  • IK03
  • IP54_IP20
  • Protection Class 1
  • Ta=25
