BUSCADOR DE PRODUCTOS

PopPack

  • PopPack
  • PopPack

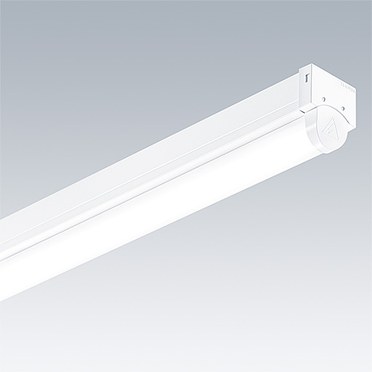

Tubo PopPack LED

  • LED one for one replacement for single and twin T8/T5 fluorescent battens
  • Up to 147lm/W - exceeding building regulation requirements
  • Optional screws can be added to end caps to lock the housing to ensure increased security
  • Additional savings can be achieved via DALI control and an integral PIR sensor.

Materiales y acabados

Tubo: acero con prerrecubrimiento formado con rodillos, blanco (RAL9016).
Tapas laterales/portalámparas: policarbonato moldeado por inyección, blanco.
Difusor: acrílico opalino texturado.

Instalación y montaje

1 or 2 x (3 x 2 x 2.5mm²) terminal blocks with capacity for loop in/out 2.5mm² cables. Ambient temperature: -20 to +25°C for the standard product, 0 to 25°C for the emergency versions, normal, dry, indoor atmospheres. Suitable for direct surface mounting, BESA mounting or wire suspension. Easy alignment through slots in the spine. Optional screws can be added to end caps to lock the housing.

Especificación

Texto para especificación:
Luminaria lineal LED con un driver LED extraíble. Equipo DALI o conmutable, también hay disponibles versiones con sensor y de emergencia integradas.
Como PopPack LED de Thorn Lighting.

New Product
LumExpress Product
eControl Product

PopPack tubos

PopPack tubos, regulable

PopPack tubos, emergencia

PopPack tubos, regulable, emergencia

PopPack tubos, con sensor

DescripciónPotencia de la luminaria (W)Salida lumínica (lm)   TipoPeso (kg)Código SAP
POPPACK LED 11000-840 PIR L18007410900LED1.8096631589
POPPACK LED 3000-840 PIR L1200243350LED1.4096631581
POPPACK LED 4500-840 PIR L1200364650LED1.4096631582
POPPACK LED 5000-840 PIR L1500364900LED1.7096631585
POPPACK LED 6000-840 PIR L1500536400LED1.7096631586
POPPACK LED 6500-840 PIR L1800546800LED1.8096631588
POPPACK LED 7000-840 PIR L1200527300LED1.4096631583
POPPACK LED 9000-840 PIR L1500649100LED1.7096631587

PopPack accesorios
