Voyager Fit
Projects
Thorn eleva los estándares en 2 Stockport Exchange
Estación de autobuses Haymarket (Newcastle)Compacto, duradero, fácil de usar
- Las luminarias de emergencia autónomas cuentan con baterías de larga duración. La batería de fostato de hierro y litio de alta tecnología utilizada es robusta y viene con una garantía de tres años, aporta tranquilidad a los usuarios.

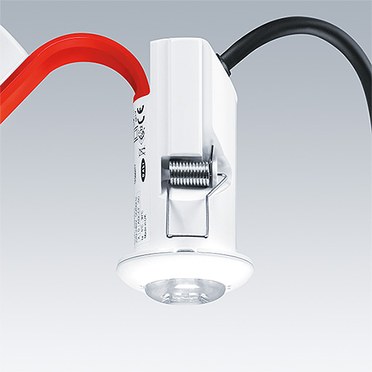

- Voyager Fit recessed is so small that it can be installed almost anywhere with very little impact on ceilings. And because it only requires an 80 mm ceiling void, even buildings with limited space can benefit from the latest in LED emergency lighting
- Voyager Fit surface is available in two heights. Slim for rear cable entry and standard for side or rear cable entry. With two colour options Voyager Fit is a flexible solution for many applications
- Las lentes intercambiables de Voyager Fit hacen muy sencillo conseguir la distribución lumínica necesaria para el proyecto de emergencia. Las lentes son sencillas de instalar con un simple click.
Materiales y acabados
El cuerpo de la luminaria está fabricado de policarbonato blanco, lentes de policarbonato transparente, red rubber strap para la conexión de la batería.
Instalación y montaje
Voyager Fit recessed can be installed directly from the box into a wide range of ceiling types including thicknesses from 1mm – 25mm.
The surface mounted versions coming with 2 housing heights: 32mm only in case where the installation cable comes from the back. Equipped with a detachable connector which allows an easy and convenient pre-wiring via push-fit terminal block.
Especificación
To specify state:
Self contained emergency luminaire for recessed or surface mounting in ceilings with interchangeable lenses for most flexible optimized illumination for escape, antipanic and spot lighting. Only 80 mm ceiling voids necessary for the recessed version and small dimensions for unobtrusive installation. Manual, selftest or selftest/addressable - version capability. Equipped with LiFePo battery technology.
As Thorn Voyager Fit.
- New Product
▼ Voyager Fit empotrada
| Descripción | Tipo | Peso (kg) | Código SAP | ||||||
|---|---|---|---|---|---|---|---|---|---|
| VOYAGER FIT MRC E3 NM | LED | 0.22 | 96629566 | ||||||
| VOYAGER FIT MRC E3D NM | LED | 0.23 | 96629568 | ||||||
| VOYAGER FIT MRC E3T NM | LED | 0.23 | 96629567 |
▼ Voyager Fit Surface
| Descripción | Tipo | Peso (kg) | Código SAP | ||||||
|---|---|---|---|---|---|---|---|---|---|
| Voyager FIT MSC E3 NM BK | LED | 0.30 | 96670372 | ||||||
| Voyager FIT MSC E3 NM WH | LED | 0.30 | 96670371 | ||||||
| Voyager FIT MSC E3D NM BK | LED | 0.30 | 96670380 | ||||||
| Voyager FIT MSC E3D NM WH | LED | 0.30 | 96670379 | ||||||
| Voyager FIT MSC E3T NM BK | LED | 0.30 | 96670376 | ||||||
| Voyager FIT MSC E3T NM WH | LED | 0.30 | 96670375 | ||||||
| Voyager FIT MSC slim E3 NM BK | LED | 0.27 | 96670374 | ||||||
| Voyager FIT MSC slim E3 NM WH | LED | 0.27 | 96670373 | ||||||
| Voyager FIT MSC slim E3D NM BK | LED | 0.27 | 96670382 | ||||||
| Voyager FIT MSC slim E3D NM WH | LED | 0.27 | 96670381 | ||||||
| Voyager FIT MSC slim E3T NM BK | LED | 0.27 | 96670378 | ||||||
| Voyager FIT MSC slim E3T NM WH | LED | 0.27 | 96670377 |
