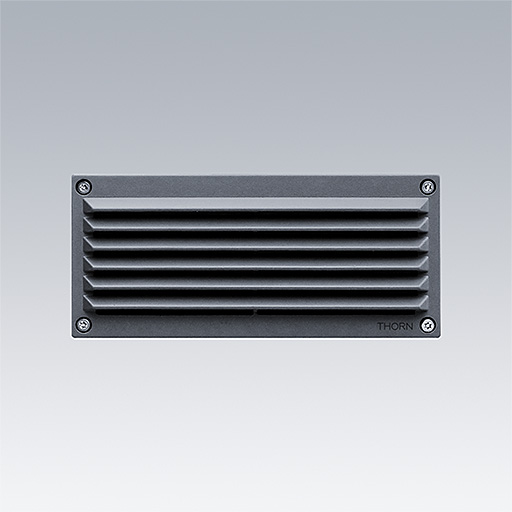

Axyl Trim / AXYL TRIM L GRID 6L940 A/S HF ANT

Axyl Trim, grid facia, a wall recessed, architectural LED luminaire for decorative facade lighting, with asymmetrical distribution. Class I electrical.. Fixed output LED driver. Recessed box 96700290 to be order separately, IP65, Impact strength: IK06. Housing: Die-cast aluminium, powder coated textured anthracite. Working ambient temperature: -20°C to +50°C. Complete with 4000K LED. Recessed box 96700290 to be order separately.

Dimensions: 230 x 102 x 95 mm
Luminaire input power: 10.9 W
Luminaire luminous flux: 128 lm
Luminaire efficacy: 12 lm/W
Weight: 1.38 kg

Mode selection

Mode selectionSTD - estándar

• Posición de la lámpara:STD - estándar
• Fuente de luz:LED
• Flujo luminoso de luminaria*:128 lm
• Rendimiento luminoso de las luminarias*:12 lm/W
• Índice de reproducción de los colores mín.:90
• Temperatura de color correlativa*:4000 Kelvin
• Tolerancia cromática (initial MacAdam):3
• Vida útil (B10)*:L80 70000 h para 25 °C
• Driver:1x LED_DRV
• Potencia de la luminaria*:10,9 W Factor de potencia = 0,94
• Control:FIX
