7 Series

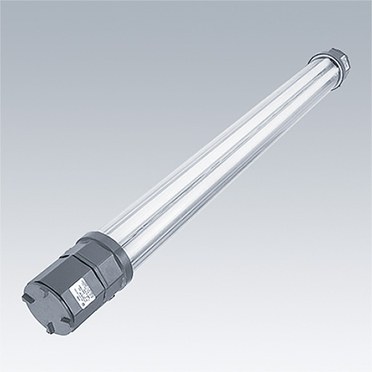

An ATEX approved Zone 1 (Category 2) flameproof (EEx d) luminaire for use with T26 (T8) and TC-L fluorescent lamps
- Lightweight, slimline, compact profile
- Threaded mounting point for secure fixing
- Polycarbonate overtube for impact resistance
- Slide out gear tray for easy and rapid lamp changing
Materiales y acabados
Body: aluminium alloy finished Petrelux green. 2 pack epoxy with pre-treated and primed surface.
Overtube: polycarbonate.
Instalación y montaje
Suitable for suspended mounting. For rod mounting via 2 x M8 tapped holes, with fixing centres 18W=632mm, 36W=1242mm, 58W=1542, 70W=1806mm and 55W=1542mm. For chain suspension or tube mounting, accessory kits are available. 4x20mm cable entries, two at each end, with 3 plugs fitted. Terminals accept 4mm² max and are suitable for looping.
Especificación
To specify state:
EEx d Flameproof fluorescent luminaire in aluminium alloy and polycarbonate overtube. Slide out gear tray IP66.
As Thorn Petrelux 7
New Product
LumExpress Product
eControl Product
▼ Petrelux 7 Series Luminaires
| Descripción | Tipo | Socket | Peso (kg) | Código SAP | |||||
|---|---|---|---|---|---|---|---|---|---|
| PETRELUX P7 1x58w T26 HF | FD | G13 | 8.20 | 96102879 | |||||
| PETRELUX P7 2x36w T26 HF | FD | G13 | 7.10 | 96100187 | |||||
| PETRELUX P7 2x58w T26 HF | FD | G13 | 8.00 | 96102882 | |||||
| PETRELUX P7 2x70w T26 HF | FD | G13 | 10.00 | 96102883 |
▼ Petrelux 7 Series Emergency Luminaires
| Descripción | Tipo | Socket | Peso (kg) | Código SAP | |||||
|---|---|---|---|---|---|---|---|---|---|
| <PETRELUX P7 2x58w T26 HF E3 | FD | G13 | 10.70 | 96102918 | |||||
| PETRELUX P7 1x58w T26 HF E3 | FD | G13 | 11.00 | 96102917 | |||||
| PETRELUX P7 2x36w T26 HF E3 | FD | G13 | 9.40 | 96012602 |
▼ Petrelux 7 Series Attach. & Access
| Descripción | Peso (kg) | Código SAP | |||||||
|---|---|---|---|---|---|---|---|---|---|
| PETRELUX P7 KIT FIX MRS (1 PCS) | 0.04 | 96012611 | |||||||
| PETRELUX P9 KIT FIX BRA | 0.20 | 96007381 |
