Cetus / CETUS3 S LCS HF RWH

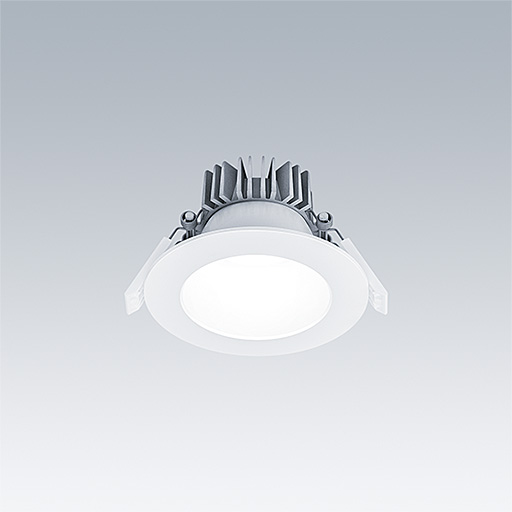

A low height, recessed LED downlight. Suitable for ceiling cut-outs Ø95-125 mm for easy refurbishments or fast initial installations. Remote, pluggable, Fixed output LED driver. Loop in - loop out possible. Body: die-cast aluminium for thermal management. Diffuser: polycarbonate, smooth reflector in finish with wide beam. Reflector and trim: high quality, highly reflective polycarbonate. Class II electrical, IP44_IP20. Spring clips suitable for ceiling thicknesses from 1 to 25 mm.

Equipped with LCS technology, with two lumen outputs (800lm and 1500lm) and three colour temperatures (3000K, 3500K and 4000K) selectable from below by a rotary switch. Pre-set to 4000K, high luminous flux.

Dimensions: Ø137 x 80 mm
Luminaire input power: 13.1 W
Luminaire luminous flux: 1509 lm
Luminaire efficacy: 115 lm/W
Weight: 0.32 kg

Mode selection

Mode selectionLCS Low 830LCS Low 835LCS Low 840LCS High 830LCS High 835LCS High 840

• Posición de la lámpara:LCS High 840
• Fuente de luz:LED
• Flujo luminoso de luminaria*:1509 lm
• Rendimiento luminoso de las luminarias*:115 lm/W
• Índice de reproducción de los colores mín.:80
• Driver:1 x 87500986 LC 13/400/31 fixC SRL ADV2
• Temperatura de color correlativa*:4000 Kelvin
• Tolerancia cromática (initial MacAdam):3
• Vida útil nominal media*:L80 50000 h para 25 °C
• Potencia de la luminaria*:13,1 W Factor de potencia = 0,94
• Control:FIX
• Categoría de mantenimiento CIE 97:C - Reflector cerrado en parte superior
