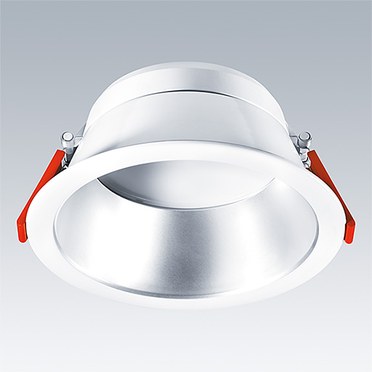

Chalice
Projects
Thorn revitaliza el Abu Dhabi National Exhibition Centre
Thorn ilumina el famoso Estadio de WembleyEl rango del Downlight LED se encuentra en dos medidas ofreciendo un remplazo directo para soluciones CFL con más de 3000
- Alto rendimiento de 106lm/W para un consumo reducido
- Menos de 100mm de altura total haciendola ideal para techos de poca profundidad
- IP54 de protección para su uso en Baños/aseos
- Sustituyendo el CFL con bajo matenimiento una vida útil de 50.000 hours L80
- OTRAS OPCIONES DISPONIBLES (regulación, emergencia…). Consulte las opciones de configuración en myProduct.
Materiales y acabados
Carcasa/Material del dispositivo : Aluminio pintado en blanco
Bloque final: RAL9016
Reflector final: Satin
Instalación y montaje
Chalice puede ser instalada directamente en techos de diversos tipos de profundidades y de varios tipos de grosor de 1mm-40mm. Sus controladores remotos hacen de la instalación y mantenimiento una tarea fácil.
Especificación
Texto para especificación:
Downlight LED para empotrar que incorpora una mejora en la disipación de calor, resistente cuerpo de aluminio con IP54. Equipo electrónico fijo o regulable o con opción de de emergencia. Temperatura de color de 3000K/4000K con un CRI >80 y un UGR <22. Altura <100mm y un diámetro que puede ser de 150mm o 200 mm. Vida útil de 50,000 horas (L80) a una temperatura de 25ºC.
Como Chalice de Thorn Lighting..
New Product
LumExpress Product
eControl Product
▼ Chalice 200
| Descripción | Potencia de la luminaria (W) | Salida lumínica (lm) | Tipo | Peso (kg) | Código SAP | ||||
|---|---|---|---|---|---|---|---|---|---|
| CHAL 200 LED1400-830 HF RSB | 13 | 1370 | LED | 0.91 | 96629019 | ||||
| CHAL 200 LED1400-840 HF RSB | 13 | 1440 | LED | 0.91 | 96629020 | ||||
| CHAL 200 LED2000-830 HF RSB | 17 | 1990 | LED | 0.91 | 96642304 | ||||
| CHAL 200 LED2000-840 HF RSB | 17 | 2090 | LED | 0.91 | 96642305 | ||||
| CHAL 200 LED3000-830 HF RSB | 26 | 2970 | LED | 0.91 | 96629021 | ||||
| CHAL 200 LED3000-840 HF RSB | 26 | 3130 | LED | 0.91 | 96629022 |
▼ Chalice 150
| Descripción | Potencia de la luminaria (W) | Salida lumínica (lm) | Tipo | Peso (kg) | Código SAP | ||||
|---|---|---|---|---|---|---|---|---|---|
| CHAL 150 LED1400-830 HF RSB | 12 | 1340 | LED | 0.49 | 96629023 | ||||
| CHAL 150 LED1400-840 HF RSB | 12 | 1410 | LED | 0.49 | 96629024 | ||||
| CHAL 150 LED2000-830 HF RSB | 17 | 1880 | LED | 0.49 | 96629025 | ||||
| CHAL 150 LED2000-840 HF RSB | 17 | 1980 | LED | 0.49 | 96629026 | ||||
| CHAL 150 LED3000-830 HF RSB | 27 | 2740 | LED | 0.49 | 96629027 | ||||
| CHAL 150 LED3000-840 HF RSB | 27 | 2880 | LED | 0.49 | 96629028 |
▼ Chalice 200 emergencia
| Descripción | Potencia de la luminaria (W) | Salida lumínica (lm) | Tipo | Peso (kg) | Código SAP | ||||
|---|---|---|---|---|---|---|---|---|---|
| CHAL 200 LED1400-830 HF E3 RSB | 13 | 1370 | LED | 1.93 | 92900789 | ||||
| CHAL 200 LED1400-830 HF E3TX RSB | 13 | 1370 | LED | 1.93 | 92900790 | ||||
| CHAL 200 LED1400-840 HF E3 RSB | 13 | 1440 | LED | 1.93 | 92900794 | ||||
| CHAL 200 LED1400-840 HF E3TX RSB | 13 | 1440 | LED | 1.93 | 92900795 | ||||
| CHAL 200 LED2000-830 HF E3 RSB | 17 | 1990 | LED | 1.93 | 96642316 | ||||
| CHAL 200 LED2000-840 HF E3 RSB | 17 | 2090 | LED | 1.93 | 96642317 | ||||
| CHAL 200 LED3000-830 HF E3 RSB | 26 | 2970 | LED | 1.93 | 92900732 | ||||
| CHAL 200 LED3000-830 HF E3TX RSB | 26 | 2970 | LED | 1.93 | 92900733 | ||||
| CHAL 200 LED3000-840 HF E3 RSB | 26 | 3130 | LED | 1.93 | 92900656 | ||||
| CHAL 200 LED3000-840 HF E3 RSB WL4 | 26 | 3130 | LED | 1.93 | 92902481 | ||||
| CHAL 200 LED3000-840 HF E3TX RSB | 26 | 3130 | LED | 1.93 | 92900744 |
▼ Chalice 200 regulable
| Descripción | Potencia de la luminaria (W) | Salida lumínica (lm) | Tipo | Peso (kg) | Código SAP | ||||
|---|---|---|---|---|---|---|---|---|---|
| CHAL 200 LED1400-830 HFIX RSB | 13 | 1370 | LED | 0.91 | 92900791 | ||||
| CHAL 200 LED1400-840 HFIX EC RSB | 13 | 1440 | LED | 0.91 | 92901061 | ||||
| CHAL 200 LED1400-840 HFIX RSB | 13 | 1440 | LED | 0.91 | 92900796 | ||||
| CHAL 200 LED1400-927-65 HFIX RSB | 19 | 1400 | LED | 0.93 | 96633611 | ||||
| CHAL 200 LED2000-830 HFIX RSB | 17 | 1990 | LED | 0.91 | 96642310 | ||||
| CHAL 200 LED2000-840 HFIX RSB | 17 | 2090 | LED | 0.91 | 96642311 | ||||
| CHAL 200 LED2000-927-65 HFIX RSB | 26 | 2000 | LED | 0.93 | 96633612 | ||||
| CHAL 200 LED3000-830 HFIX RSB | 26 | 2970 | LED | 0.91 | 92900729 | ||||
| CHAL 200 LED3000-840 HFIX RSB | 26 | 3130 | LED | 0.91 | 92900688 |
▼ Chalice 200 con regulación, emergencia
| Descripción | Potencia de la luminaria (W) | Salida lumínica (lm) | Tipo | Peso (kg) | Código SAP | ||||
|---|---|---|---|---|---|---|---|---|---|
| CHAL 200 LED1400-840 HFIX E3 RSB | 13 | 1440 | LED | 1.93 | 92900797 | ||||
| CHAL 200 LED1400-840 HFIX E3TX RSB | 13 | 1440 | LED | 1.93 | 92900798 | ||||
| CHAL 200 LED2000-830 HFIX E3 RSB | 17 | 1990 | LED | 1.93 | 96642322 | ||||
| CHAL 200 LED2000-840 HFIX E3 RSB | 17 | 2090 | LED | 1.93 | 96642323 | ||||
| CHAL 200 LED3000-830 HFIX E3 RSB | 26 | 2970 | LED | 1.93 | 92900730 | ||||
| CHAL 200 LED3000-830 HFIX E3TX RSB | 26 | 2970 | LED | 1.93 | 92900731 | ||||
| CHAL 200 LED3000-840 HFIX E3 RSB | 26 | 3130 | LED | 1.93 | 92900743 | ||||
| CHAL 200 LED3000-840 HFIX E3TX RSB | 26 | 3130 | LED | 1.93 | 92900742 |
▼ Chalice 200 basicDIM
| Descripción | Potencia de la luminaria (W) | Salida lumínica (lm) | Tipo | Peso (kg) | Código SAP | ||||
|---|---|---|---|---|---|---|---|---|---|
| CHAL 200 LED1400-840 BC RSB | 13 | 1440 | LED | 0.84 | 96631228 | ||||
| CHAL 200 LED2000-840 BC RSB | 17 | 2090 | LED | 0.97 | 96631227 | ||||
| CHAL 200 LED3000-840 BC RSB | 26 | 3130 | LED | 0.97 | 92909117 |
▼ Chalice 200 basicDIM, emergency
| Descripción | Potencia de la luminaria (W) | Salida lumínica (lm) | Tipo | Peso (kg) | Código SAP | ||||
|---|---|---|---|---|---|---|---|---|---|
| CHAL 200 LED1400-840 BC E3 RSB | 13 | 1440 | LED | 1.99 | 92912548 | ||||
| CHAL 200 LED2000-840 BC E3 RSB | 17 | 2090 | LED | 1.99 | 92912547 | ||||
| CHAL 200 LED3000-840 BC E3 RSB | 26 | 3130 | LED | 1.99 | 92912549 |
▼ Chalice 150 (variants)
| Descripción | Potencia de la luminaria (W) | Salida lumínica (lm) | Tipo | Peso (kg) | Código SAP | ||||
|---|---|---|---|---|---|---|---|---|---|
| CHAL 150 LED3000-830 HFIX EC RSB WO5 | 27 | 2740 | LED | 0.49 | 92901424 |
▼ Chalice 150 emergencia
| Descripción | Potencia de la luminaria (W) | Salida lumínica (lm) | Tipo | Peso (kg) | Código SAP | ||||
|---|---|---|---|---|---|---|---|---|---|
| CHAL 150 LED1400-830 HF E3 RSB | 12 | 1340 | LED | 1.51 | 92900779 | ||||
| CHAL 150 LED1400-830 HF E3TX RSB | 12 | 1340 | LED | 1.51 | 92900780 | ||||
| CHAL 150 LED1400-840 HF E3 RSB | 12 | 1410 | LED | 1.51 | 92900672 | ||||
| CHAL 150 LED1400-840 HF E3TX RSB | 12 | 1410 | LED | 1.51 | 92900752 | ||||
| CHAL 150 LED2000-830 HF E3 RSB | 17 | 1880 | LED | 1.51 | 92900784 | ||||
| CHAL 150 LED2000-830 HF E3TX RSB | 17 | 1880 | LED | 1.51 | 92900785 | ||||
| CHAL 150 LED2000-840 HF E3 RSB | 17 | 1980 | LED | 1.51 | 92900758 | ||||
| CHAL 150 LED2000-840 HF E3TX RSB | 17 | 1980 | LED | 1.51 | 92900759 | ||||
| CHAL 150 LED3000-830 HF E3 RSB | 27 | 2740 | LED | 1.51 | 92900727 | ||||
| CHAL 150 LED3000-830 HF E3TX RSB | 27 | 2740 | LED | 1.51 | 92900728 | ||||
| CHAL 150 LED3000-840 HF E3 RSB | 27 | 2880 | LED | 1.51 | 92900762 | ||||
| CHAL 150 LED3000-840 HF E3TX RSB | 27 | 2880 | LED | 1.51 | 92900661 |
▼ Chalice 150 con regulación
| Descripción | Potencia de la luminaria (W) | Salida lumínica (lm) | Tipo | Peso (kg) | Código SAP | ||||
|---|---|---|---|---|---|---|---|---|---|
| CHAL 150 LED1400-840 HFIX RSB | 12 | 1410 | LED | 0.54 | 92900679 | ||||
| CHAL 150 LED1400-927-65 HFIX RSB | 23 | 1400 | LED | 0.61 | 96633608 | ||||
| CHAL 150 LED2000-840 HFIX RSB | 17 | 1980 | LED | 0.54 | 92900680 | ||||
| CHAL 150 LED2000-927-65 HFIX RSB | 29 | 1850 | LED | 0.61 | 96633609 | ||||
| CHAL 150 LED3000-830 HFIX RSB | 27 | 2740 | LED | 0.59 | 92900724 | ||||
| CHAL 150 LED3000-840 HFIX RSB | 27 | 2880 | LED | 0.59 | 92900671 |
▼ Chalice 150 con regulación, emergencia
| Descripción | Potencia de la luminaria (W) | Salida lumínica (lm) | Tipo | Peso (kg) | Código SAP | ||||
|---|---|---|---|---|---|---|---|---|---|
| CHAL 150 LED1400-840 HFIX E3 RSB | 12 | 1410 | LED | 1.51 | 92900765 | ||||
| CHAL 150 LED1400-840 HFIX E3TX RSB | 12 | 1410 | LED | 1.51 | 92900751 | ||||
| CHAL 150 LED2000-840 HFIX E3 RSB | 17 | 1980 | LED | 1.51 | 92900760 | ||||
| CHAL 150 LED2000-840 HFIX E3TX RSB | 17 | 1980 | LED | 1.51 | 92900761 | ||||
| CHAL 150 LED3000-830 HFIX E3 RSB | 27 | 2740 | LED | 1.51 | 92900725 | ||||
| CHAL 150 LED3000-830 HFIX E3TX RSB | 27 | 2740 | LED | 1.51 | 92900726 | ||||
| CHAL 150 LED3000-840 HFIX E3 RSB | 27 | 2880 | LED | 1.51 | 92900763 | ||||
| CHAL 150 LED3000-840 HFIX E3TX RSB | 27 | 2880 | LED | 1.51 | 92900764 |
▼ Chalice 150 basicDIM
| Descripción | Potencia de la luminaria (W) | Salida lumínica (lm) | Tipo | Peso (kg) | Código SAP | ||||
|---|---|---|---|---|---|---|---|---|---|
| CHAL 150 LED1400-840 BC RSB | 12 | 1410 | LED | 0.57 | 96631230 | ||||
| CHAL 150 LED2000-840 BC RSB | 17 | 1980 | LED | 0.57 | 96631229 | ||||
| CHAL 150 LED3000-840 BC RSB | 27 | 2880 | LED | 0.62 | 92912550 |
▼ Chalice 150 basicDIM, emergency
| Descripción | Potencia de la luminaria (W) | Salida lumínica (lm) | Tipo | Peso (kg) | Código SAP | ||||
|---|---|---|---|---|---|---|---|---|---|
| CHAL 150 LED1400-840 BC E3 RSB | 12 | 1410 | LED | 1.59 | 92912553 | ||||
| CHAL 150 LED2000-840 BC E3 RSB | 17 | 1980 | LED | 1.64 | 92912552 | ||||
| CHAL 150 LED3000-840 BC E3 RSB | 27 | 2880 | LED | 1.64 | 92912551 |
▼ Chalice Accesorios
| Descripción | Peso (kg) | Código SAP | |||||||
|---|---|---|---|---|---|---|---|---|---|
| CHAL 150 FROSTED RING | 0.05 | 96627651 | |||||||
| CHAL 150 HALO RING | 0.17 | 96627650 | |||||||
| CHAL 150 WALLWASHER RSB W6 | 0.17 | 96627652 | |||||||
| CHAL 200 FROSTED RING | 0.10 | 96627649 |
▼ Chalice Accessorio
| Descripción | Peso (kg) | Código SAP | |||||||
|---|---|---|---|---|---|---|---|---|---|
| CHAL MSF HOUSING | 1.10 | 96628908 | |||||||
| CHAL MSF MSW1 1500mm | 0.24 | 96238862 | |||||||
| CHALICE 150 CEILING RING 160-170 WH | 0.41 | 96633601 | |||||||
| CHALICE 150 CEILING RING 180-190 WH | 0.48 | 96633602 | |||||||
| CHALICE 200 CEILING RING 210-220 WH | 0.44 | 96633600 | |||||||
| CHALICE 200 CEILING RING 230-240 WH | 0.48 | 96633599 | |||||||
| CHALICE/CETUS3 200 CEILING RING 250MM WH | 0.56 | 96633598 |
