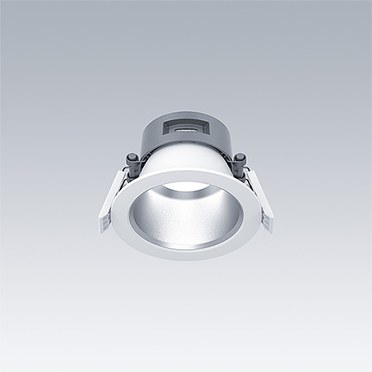

Chalice 3
Una gama de luminarias empotrables LED de alta eficiencia y sostenibilidad en tres tamaños con hasta 5000 lm
- La eficiencia de luminaria más alta posible para aplicaciones minoristas de hasta 155 lm/W para un menor coste energético
- Completo con temperaturas de color LED de 3000 k y 4000 K en CRI80 o CRI90. Disponible en paquetes de lúmenes entre 800 y 5000 lm (según el tamaño)
- Tres superficies lisas del reflector: RSB en acabado satinbrite con haz ancho, RMB en acabado de alto brillo o especular para un mayor control de los reflejos (UGR19 según norma EN 12464) y RWH en acabado blanco con haz ancho
- Tool free spring clip installation, out of the box for mounting in a wide range of ceiling types with ceiling thicknesses of 1-40mm. Remote pluggable driver makes installation quick and easy. Through-wiring possible
- IP54 como estándar para luminarias ocultas, IP65 disponible en myProduct. Luminaria para techos altos (5000 lm) en versiones IP20 y IP43 disponibles en myProduct. IP43 de montaje en superficie de forma estándar, IP54 disponible en myProduct
Materiales y acabados
Body: diecast aluminium for high efficient thermal management with recycling content >90%
Smooth reflector in satinbrite finish with wide beam; reflector/trim high-quality, highly reflective polycarbonate
Smooth reflector in high glossy/specular finish for improved glare control in office applications (UGR19 according to EN 12464)
Smooth reflector in white finish with wide beam; reflector/trim high-quality, highly reflective polycarbonate
Trim similar to RAL 9016
Instalación y montaje
Chalice 3 can be installed tool free, directly out of the box into a wide range of ceiling types, suitable for 1-40mm ceiling thicknesses. Only 100mm overall recess depth to allow installation into low and restricted ceiling voids. Remote pluggable driver makes installation and maintenance quick and easy.
Especificación
To specify state:
A high efficient and sustainable LED downlight with recessed height <100mm and cut out of 100mm, 150mm or 200mm. High efficient thermal management from diecast aluminium with recycling content >90%. IP54 as standard or IP65 with pre-mounted cover. IK09 rating. Fixed or dimmable driver (EHF, HFIX, COR, NLX) optional in combination with emergency E3/E3D. Colour temperature is 3000K/4000K/ with CRI >80 or CRI >90. Reflector made from PC with three surfaces: RSB in satinbrite finish with wide beam, RMB in high glossy/specular finish (UGR19 according to EN12464), RWH in white finish with wide beam. Luminaire luminous flux: 800–5000 lm. Lifetime is 50,000 hours at L90 (Ta 25°C).
As Thorn Chalice 3
- New Product
New Product
LumExpress Product
eControl Product
▼ Chalice 3 100
| Descripción | Tipo | Peso (kg) | Código SAP | ||||||
|---|---|---|---|---|---|---|---|---|---|
| CHAL3 100 1400-830 EHF RSB | LED | 0.41 | 92989190 | ||||||
| CHAL3 100 1400-840 EHF RSB | LED | 0.41 | 96108661 | ||||||
| CHAL3 100 1400-840 EHF RSB IP65 | LED | 0.42 | 92992995 | ||||||
| CHAL3 100 1400-940 EHF RSB | LED | 0.50 | 92989200 | ||||||
| CHAL3 100 800-830 EHF RSB | LED | 0.41 | 92989189 | ||||||
| CHAL3 100 800-840 EHF RSB | LED | 0.41 | 96108660 | ||||||
| CHAL3 100 800-940 EHF RSB | LED | 0.50 | 92989197 |
▼ Chalice 3 100 para emergencias
| Descripción | Tipo | Peso (kg) | Código SAP | ||||||
|---|---|---|---|---|---|---|---|---|---|
| CHAL3 100 1400-830 EHF E3 RSB | LED | 0.86 | 93900898 | ||||||
| CHAL3 100 1400-830 EHF E3D RSB | LED | 0.86 | 93901345 | ||||||
| CHAL3 100 1400-840 EHF E3 RSB | LED | 0.86 | 93901031 | ||||||
| CHAL3 100 1400-840 EHF E3D RSB | LED | 0.86 | 93901355 | ||||||
| CHAL3 100 800-830 EHF E3 RSB | LED | 0.86 | 93900899 | ||||||
| CHAL3 100 800-830 EHF E3D RSB | LED | 0.86 | 93901343 | ||||||
| CHAL3 100 800-840 EHF E3 RSB | LED | 0.86 | 93901335 | ||||||
| CHAL3 100 800-840 EHF E3D RSB | LED | 0.86 | 93901334 |
▼ Chalice 3 100 con regulación de intensidad
| Descripción | Tipo | Peso (kg) | Código SAP | ||||||
|---|---|---|---|---|---|---|---|---|---|
| CHAL3 100 1400-830 HFIX RSB | LED | 0.41 | 92989193 | ||||||
| CHAL3 100 1400-840 HFIX RSB | LED | 0.41 | 92989194 | ||||||
| CHAL3 100 1400-940 HFIX RSB | LED | 0.50 | 92989240 | ||||||
| CHAL3 100 800-830 HFIX RSB | LED | 0.41 | 92989192 | ||||||
| CHAL3 100 800-840 HFIX RSB | LED | 0.41 | 92989239 | ||||||
| CHAL3 100 800-940 HFIX RSB | LED | 0.50 | 92989201 |
▼ Chalice 3 100 con regulación de intensidad, para emergencias
| Descripción | Tipo | Peso (kg) | Código SAP | ||||||
|---|---|---|---|---|---|---|---|---|---|
| CHAL3 100 1400-830 HFIX E3 RSB | LED | 0.86 | 93900897 | ||||||
| CHAL3 100 1400-830 HFIX E3D RSB | LED | 0.86 | 93900895 | ||||||
| CHAL3 100 1400-840 HFIX E3 RSB | LED | 0.86 | 93901018 | ||||||
| CHAL3 100 1400-840 HFIX E3D RSB | LED | 0.86 | 93901346 | ||||||
| CHAL3 100 800-830 HFIX E3 RSB | LED | 0.86 | 93901017 | ||||||
| CHAL3 100 800-830 HFIX E3D RSB | LED | 0.86 | 93901344 | ||||||
| CHAL3 100 800-840 HFIX E3 RSB | LED | 0.86 | 93901297 | ||||||
| CHAL3 100 800-840 HFIX E3D RSB | LED | 0.86 | 93901299 |
▼ Chalice 3 150
| Descripción | Tipo | Peso (kg) | Código SAP | ||||||
|---|---|---|---|---|---|---|---|---|---|
| CHAL3 150 1400-830 EHF RMB | LED | 0.68 | 92989206 | ||||||
| CHAL3 150 1400-830 EHF RSB | LED | 0.68 | 92989202 | ||||||
| CHAL3 150 1400-840 EHF RMB | LED | 0.68 | 92989209 | ||||||
| CHAL3 150 1400-840 EHF RSB | LED | 0.68 | 96108662 | ||||||
| CHAL3 150 1400-940 EHF RMB | LED | 0.68 | 92989227 | ||||||
| CHAL3 150 1400-940 EHF RSB | LED | 0.68 | 92989224 | ||||||
| CHAL3 150 2000-830 EHF RMB | LED | 0.68 | 92989207 | ||||||
| CHAL3 150 2000-830 EHF RSB | LED | 0.68 | 92989203 | ||||||
| CHAL3 150 2000-840 EHF RMB | LED | 0.68 | 92989210 | ||||||
| CHAL3 150 2000-840 EHF RSB | LED | 0.68 | 96108663 | ||||||
| CHAL3 150 2000-840 EHF RSB IP65 | LED | 0.71 | 96108789 | ||||||
| CHAL3 150 2000-940 EHF RMB | LED | 0.68 | 92989228 | ||||||
| CHAL3 150 2000-940 EHF RSB | LED | 0.68 | 92989225 | ||||||
| CHAL3 150 3000-830 EHF RMB | LED | 0.68 | 92989208 | ||||||
| CHAL3 150 3000-830 EHF RSB | LED | 0.68 | 92989204 | ||||||
| CHAL3 150 3000-840 EHF RMB | LED | 0.68 | 92989211 | ||||||
| CHAL3 150 3000-840 EHF RSB | LED | 0.68 | 96108664 | ||||||
| CHAL3 150 3000-940 EHF RMB | LED | 0.68 | 92989229 | ||||||
| CHAL3 150 3000-940 EHF RSB | LED | 0.68 | 92989226 |
▼ Chalice 3 150 para emergencias
| Descripción | Tipo | Peso (kg) | Código SAP | ||||||
|---|---|---|---|---|---|---|---|---|---|
| CHAL3 150 1400-830 EHF E3 RMB | LED | 1.13 | 93901051 | ||||||
| CHAL3 150 1400-830 EHF E3 RSB | LED | 1.13 | 93901048 | ||||||
| CHAL3 150 1400-830 EHF E3D RMB | LED | 1.13 | 93901352 | ||||||
| CHAL3 150 1400-830 EHF E3D RSB | LED | 1.13 | 93901350 | ||||||
| CHAL3 150 1400-840 EHF E3 RMB | LED | 1.13 | 93901197 | ||||||
| CHAL3 150 1400-840 EHF E3 RSB | LED | 1.13 | 93901030 | ||||||
| CHAL3 150 1400-840 EHF E3D RMB | LED | 1.13 | 93901195 | ||||||
| CHAL3 150 2000-830 EHF E3 RMB | LED | 1.13 | 93901052 | ||||||
| CHAL3 150 2000-830 EHF E3 RSB | LED | 1.13 | 93901049 | ||||||
| CHAL3 150 2000-830 EHF E3D RMB | LED | 1.13 | 93901354 | ||||||
| CHAL3 150 2000-840 EHF E3 RMB | LED | 1.13 | 93901196 | ||||||
| CHAL3 150 2000-840 EHF E3 RSB | LED | 1.13 | 93900863 | ||||||
| CHAL3 150 2000-840 EHF E3D RMB | LED | 1.13 | 93901198 | ||||||
| CHAL3 150 2000-840 EHF E3D RSB | LED | 1.13 | 93901357 | ||||||
| CHAL3 150 3000-830 EHF E3 RMB | LED | 1.13 | 93901193 | ||||||
| CHAL3 150 3000-830 EHF E3 RSB | LED | 1.13 | 93901050 | ||||||
| CHAL3 150 3000-830 EHF E3D RMB | LED | 1.13 | 93901194 | ||||||
| CHAL3 150 3000-840 EHF E3 RMB | LED | 1.13 | 93901200 | ||||||
| CHAL3 150 3000-840 EHF E3 RSB | LED | 1.13 | 93901029 | ||||||
| CHAL3 150 3000-840 EHF E3D RMB | LED | 1.13 | 93901199 | ||||||
| CHAL3 150 3000-840 EHF E3D RSB | LED | 1.13 | 93901358 |
▼ Chalice 3 150 con regulación de intensidad
| Descripción | Tipo | Peso (kg) | Código SAP | ||||||
|---|---|---|---|---|---|---|---|---|---|
| CHAL3 150 1400-830 HFIX RMB | LED | 0.69 | 92989218 | ||||||
| CHAL3 150 1400-830 HFIX RSB | LED | 0.69 | 92989212 | ||||||
| CHAL3 150 1400-840 HFIX RMB | LED | 0.69 | 92989221 | ||||||
| CHAL3 150 1400-840 HFIX RSB | LED | 0.69 | 92989215 | ||||||
| CHAL3 150 1400-940 HFIX RMB | LED | 0.69 | 92989233 | ||||||
| CHAL3 150 1400-940 HFIX RSB | LED | 0.69 | 92989230 | ||||||
| CHAL3 150 2000-830 HFIX RMB | LED | 0.69 | 92989219 | ||||||
| CHAL3 150 2000-830 HFIX RSB | LED | 0.69 | 92989213 | ||||||
| CHAL3 150 2000-840 HFIX RMB | LED | 0.69 | 92989222 | ||||||
| CHAL3 150 2000-840 HFIX RSB | LED | 0.69 | 92989216 | ||||||
| CHAL3 150 2000-940 HFIX RMB | LED | 0.69 | 92989234 | ||||||
| CHAL3 150 2000-940 HFIX RSB | LED | 0.69 | 92989231 | ||||||
| CHAL3 150 3000-830 HFIX RMB | LED | 0.69 | 92989220 | ||||||
| CHAL3 150 3000-830 HFIX RSB | LED | 0.69 | 92989214 | ||||||
| CHAL3 150 3000-840 HFIX RMB | LED | 0.69 | 92989223 | ||||||
| CHAL3 150 3000-840 HFIX RSB | LED | 0.69 | 92989217 | ||||||
| CHAL3 150 3000-940 HFIX RMB | LED | 0.69 | 92989243 | ||||||
| CHAL3 150 3000-940 HFIX RSB | LED | 0.69 | 92989232 |
▼ Chalice 3 150 con regulación de intensidad, para emergencias

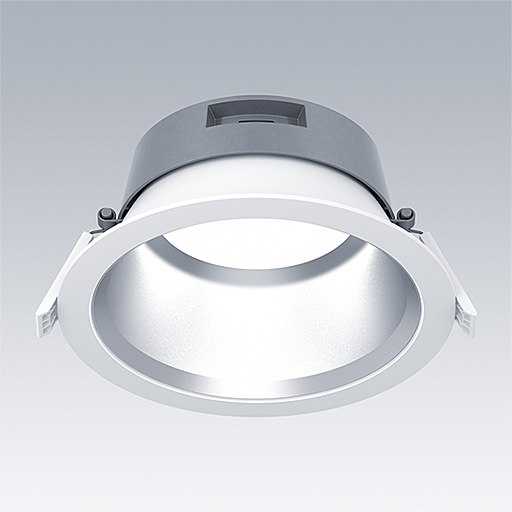

▼ Chalice 3 200
| Descripción | Tipo | Peso (kg) | Código SAP | ||||||
|---|---|---|---|---|---|---|---|---|---|
| CHAL3 200 1400-830 EHF RSB | LED | 0.94 | 92989244 | ||||||
| CHAL3 200 1400-840 EHF RSB | LED | 0.94 | 96108665 | ||||||
| CHAL3 200 1400-940 EHF RSB | LED | 0.94 | 92989250 | ||||||
| CHAL3 200 2000-830 EHF RSB | LED | 0.94 | 92989245 | ||||||
| CHAL3 200 2000-840 EHF RSB | LED | 0.94 | 96108666 | ||||||
| CHAL3 200 2000-840 EHF RSB IP65 | LED | 0.99 | 92992726 | ||||||
| CHAL3 200 2000-940 EHF RSB | LED | 0.94 | 92989251 | ||||||
| CHAL3 200 3000-830 EHF RSB | LED | 0.94 | 92989246 | ||||||
| CHAL3 200 3000-840 EHF RSB | LED | 0.94 | 96108667 | ||||||
| CHAL3 200 3000-940 EHF RSB | LED | 0.94 | 92989252 | ||||||
| CHAL3 200 5000-830 EHF FL RSB | LED | 1.39 | 92989426 | ||||||
| CHAL3 200 5000-830 EHF WFL RSB | LED | 1.39 | 92989421 | ||||||
| CHAL3 200 5000-840 EHF FL RSB | LED | 1.39 | 96108668 | ||||||
| CHAL3 200 5000-840 EHF WFL RSB | LED | 1.39 | 92989422 |
▼ Chalice 3 200 para emergencias
| Descripción | Tipo | Peso (kg) | Código SAP | ||||||
|---|---|---|---|---|---|---|---|---|---|
| CHAL3 200 1400-830 EHF E3 RSB | LED | 1.39 | 93901304 | ||||||
| CHAL3 200 1400-830 EHF E3D RSB | LED | 1.39 | 93901303 | ||||||
| CHAL3 200 1400-840 EHF E3 RSB | LED | 1.39 | 93900864 | ||||||
| CHAL3 200 1400-840 EHF E3D RSB | LED | 1.39 | 93901362 | ||||||
| CHAL3 200 2000-830 EHF E3 RSB | LED | 1.39 | 93901306 | ||||||
| CHAL3 200 2000-830 EHF E3D RSB | LED | 1.39 | 93901305 | ||||||
| CHAL3 200 2000-840 EHF E3 RSB | LED | 1.39 | 93900865 | ||||||
| CHAL3 200 2000-840 EHF E3D RSB | LED | 1.39 | 93901363 | ||||||
| CHAL3 200 3000-830 EHF E3 RSB | LED | 1.39 | 93901309 | ||||||
| CHAL3 200 3000-830 EHF E3D RSB | LED | 1.39 | 93901310 | ||||||
| CHAL3 200 3000-840 EHF E3 RSB | LED | 1.39 | 93900862 | ||||||
| CHAL3 200 3000-840 EHF E3D RSB | LED | 1.39 | 93901364 |
▼ Chalice 3 200 con regulación de intensidad
| Descripción | Tipo | Peso (kg) | Código SAP | ||||||
|---|---|---|---|---|---|---|---|---|---|
| CHAL3 200 1400-830 HFIX RSB | LED | 0.94 | 92989247 | ||||||
| CHAL3 200 1400-840 HFIX RSB | LED | 0.94 | 92989236 | ||||||
| CHAL3 200 1400-940 HFIX RSB | LED | 0.94 | 92989253 | ||||||
| CHAL3 200 2000-830 HFIX RSB | LED | 0.94 | 92989248 | ||||||
| CHAL3 200 2000-840 HFIX RSB | LED | 0.94 | 92989237 | ||||||
| CHAL3 200 2000-940 HFIX RSB | LED | 0.94 | 92989254 | ||||||
| CHAL3 200 3000-830 HFIX RSB | LED | 0.94 | 92989249 | ||||||
| CHAL3 200 3000-840 HFIX RSB | LED | 0.94 | 92989238 | ||||||
| CHAL3 200 3000-940 HFIX RSB | LED | 0.94 | 92989255 | ||||||
| CHAL3 200 5000-830 HFIX FL RSB | LED | 1.41 | 92989423 | ||||||
| CHAL3 200 5000-830 HFIX WFL RSB | LED | 1.41 | 92989425 | ||||||
| CHAL3 200 5000-840 HFIX FL RSB | LED | 1.41 | 92989424 | ||||||
| CHAL3 200 5000-840 HFIX WFL RSB | LED | 1.41 | 92989427 |
▼ Chalice 3 200 con regulación de intensidad, para emergencias
| Descripción | Tipo | Peso (kg) | Código SAP | ||||||
|---|---|---|---|---|---|---|---|---|---|
| CHAL3 200 1400-830 HFIX E3 RSB | LED | 1.39 | 93901312 | ||||||
| CHAL3 200 1400-830 HFIX E3D RSB | LED | 1.39 | 93901311 | ||||||
| CHAL3 200 1400-840 HFIX E3 RSB | LED | 1.39 | 93901293 | ||||||
| CHAL3 200 1400-840 HFIX E3D RSB | LED | 1.39 | 93901294 | ||||||
| CHAL3 200 2000-830 HFIX E3 RSB | LED | 1.39 | 93901313 | ||||||
| CHAL3 200 2000-830 HFIX E3D RSB | LED | 1.39 | 93901314 | ||||||
| CHAL3 200 2000-840 HFIX E3 RSB | LED | 1.39 | 93900866 | ||||||
| CHAL3 200 2000-840 HFIX E3D RSB | LED | 1.39 | 93901295 | ||||||
| CHAL3 200 3000-830 HFIX E3 RSB | LED | 1.39 | 93901315 | ||||||
| CHAL3 200 3000-830 HFIX E3D RSB | LED | 1.39 | 93901316 | ||||||
| CHAL3 200 3000-840 HFIX E3 RSB | LED | 1.39 | 93901296 | ||||||
| CHAL3 200 3000-840 HFIX E3D RSB | LED | 1.39 | 93901298 |
▼ Chalice 3 125 montaje en superficie
| Descripción | Tipo | Peso (kg) | Código SAP | ||||||
|---|---|---|---|---|---|---|---|---|---|
| CHAL3 MSF125 1400-840 EHF RSB | LED | 1.19 | 96108673 | ||||||
| CHAL3 MSF125 800-840 EHF RSB | LED | 1.19 | 96108672 |
▼ Chalice 3 180 montaje en superficie
| Descripción | Tipo | Peso (kg) | Código SAP | ||||||
|---|---|---|---|---|---|---|---|---|---|
| CHAL3 MSF180 1400-840 EHF RSB | LED | 2.67 | 96108669 | ||||||
| CHAL3 MSF180 2000-840 EHF RSB | LED | 2.67 | 96108670 | ||||||
| CHAL3 MSF180 3000-840 EHF RSB | LED | 2.67 | 96108671 |
▼ Chalice 3, accesorios
| Descripción | Peso (kg) | Código SAP | |||||||
|---|---|---|---|---|---|---|---|---|---|
| CHAL3 100 CEILING RING 110-120 WH | 0.09 | 96108712 | |||||||
| CHAL3 100 CEILING RING 130-140 WH | 0.10 | 96108713 | |||||||
| CHAL3 200 FROSTED RING | 0.12 | 96108711 | |||||||
| CHALICE 150 CEILING RING 160-170 WH | 0.41 | 96633601 | |||||||
| CHALICE 150 CEILING RING 180-190 WH | 0.48 | 96633602 | |||||||
| CHALICE 200 CEILING RING 210-220 WH | 0.44 | 96633600 | |||||||
| CHALICE 200 CEILING RING 230-240 WH | 0.48 | 96633599 | |||||||
| CHALICE/CETUS3 200 CEILING RING 250MM WH | 0.56 | 96633598 | |||||||
| DL CONNECTION BOX 3P TERM+LINECT | 0.07 | 96635252 | |||||||
| DL CONNECTION BOX 5P TERM+LINECT | 0.07 | 96635253 | |||||||
| GRIPPLE SAFETY WIRE | 0.01 | 96239327 | |||||||
| T CONNECTOR WL 3POLE | 0.04 | 96635256 | |||||||
| T CONNECTOR WL 5POLE | 0.04 | 96635257 | |||||||
| T CONNECTOR WO 3POLE | 0.04 | 96635254 | |||||||
| T CONNECTOR WO 5POLE | 0.04 | 96635255 | |||||||
| TEC/CONT/SLN2/SLOIN/EQL/CHAL3 ASI1 O-L | 0.07 | 22169178 | |||||||
| TEC/CONT/SLN2/SLOIN/EQL/CHAL3 ASI2 O-L | 0.80 | 22169179 |
