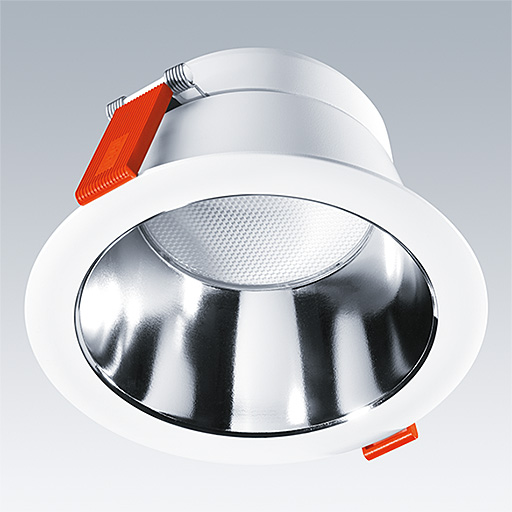

Chalice Pro
Las grandes prestaciones de esta Downlight LED ofrece una excepcional eficiencia y la mayor vida util del LED
- Eficacia líder de hasta 110lm/W
- Gran prestación en su óptica y luz dando como resultado una iluminación uniforme
- Índice de deslumbramiento <19 y un CRI de 80 para una gran calidad en aplicaciones lumínicas
- Compact 150mm cut out diameter and overall height of 94mm to meet design requirements
- OTRAS OPCIONES DISPONIBLES (regulación, emergencia…). Consulte las opciones de configuración en myProduct.
Materiales y acabados
Carcasa/Material del dispositivo : Aluminio pintado en blanco
Bloque final: RAL9016
Reflector final: Specular o Satin
Instalación y montaje
Aplicable sobre falsos techos, con un diámetro de 150mm. Chalice Pro puede ser instalada en techos de diversos tipos de profundidades y de varios tipos de grosor de 1mm-40mm. Sus controladores remotos hacen de la instalación y mantenimiento una tarea fácil.
Especificación
Texto para especificación:
Downlight Chalice Pro incorpora una optimización en disipación de calor , un cuerpo de aluminio con IP54. Downlight LED para empotrar con reflector Specular o Satin fijados en la luminaria con un sistema bayonet lock(tornillo con patillas), Posee una herramienta de montaje rapido, Ø150mm de diámetro. Instalable en techos de grosores de entre 1-40mm. Posee un paquete lumínico de 1100/2000/3000 lm con un sistema de disipación pasivo, se puede elegir entre 2 tipos de temperatura de color : 3000K and 4000K, además de ser posible el cableado continuo (loop in/out).
Como Chalice Pro de Thorn Lighting.
New Product
LumExpress Product
eControl Product
▼ Chalice Pro IRC 80, reflector Mirrorbrite, con regulación
| Descripción | Potencia de la luminaria (W) | Salida lumínica (lm) | Tipo | Peso (kg) | Código SAP | ||||
|---|---|---|---|---|---|---|---|---|---|
| CHAL PRO LED1100-830 HFIX RMB W6 | 9 | 1090 | LED | 0.49 | 96642356 | ||||
| CHAL PRO LED1100-840 BC RMB W6 | 9 | 1100 | LED | 0.57 | 96631226 | ||||
| CHAL PRO LED1100-840 HFIX RMB W6 | 9 | 1100 | LED | 0.49 | 96642357 | ||||
| CHAL PRO LED1400-927-65 HFIX RMB | 22 | 1400 | LED | 0.61 | 96634781 | ||||
| CHAL PRO LED2000-830 HFIX RMB W6 | 16 | 1900 | LED | 0.49 | 96642358 | ||||
| CHAL PRO LED2000-840 BC RMB W6 | 16 | 2030 | LED | 0.57 | 96631225 | ||||
| CHAL PRO LED2000-840 HFIX RMB W6 | 16 | 2030 | LED | 0.49 | 96642359 | ||||
| CHAL PRO LED2000-927-65 HFIX RMB | 29 | 2000 | LED | 0.61 | 96634782 | ||||
| CHAL PRO LED3000-830 HFIX RMB W6 | 25 | 2900 | LED | 0.49 | 96642360 | ||||
| CHAL PRO LED3000-840 HFIX RMB W6 | 25 | 3030 | LED | 0.49 | 96642361 |
▼ Chalice Pro IRC 80, reflector Satinbrite, con regulación
| Descripción | Potencia de la luminaria (W) | Salida lumínica (lm) | Tipo | Peso (kg) | Código SAP | ||||
|---|---|---|---|---|---|---|---|---|---|
| CHAL PRO LED1100-830 HFIX RSB W6 | 9 | 1090 | LED | 0.49 | 96642332 | ||||
| CHAL PRO LED1100-840 HFIX RSB W6 | 9 | 1100 | LED | 0.49 | 96642333 | ||||
| CHAL PRO LED1400-927-65 HFIX RSB | 22 | 1400 | LED | 0.61 | 96633613 | ||||
| CHAL PRO LED2000-830 HFIX RSB W6 | 16 | 1900 | LED | 0.49 | 96642334 | ||||
| CHAL PRO LED2000-840 HFIX RSB W6 | 16 | 2030 | LED | 0.49 | 96642335 | ||||
| CHAL PRO LED2000-927-65 HFIX RSB | 29 | 2000 | LED | 0.61 | 96633614 | ||||
| CHAL PRO LED3000-830 HFIX RSB W6 | 25 | 2900 | LED | 0.49 | 96642336 | ||||
| CHAL PRO LED3000-840 HFIX RSB W6 | 25 | 3030 | LED | 0.49 | 96642337 |
▼ Chalice Pro productos configurados, IRC 80, reflector mirrorbrite
| Descripción | Potencia de la luminaria (W) | Salida lumínica (lm) | Tipo | Peso (kg) | Código SAP | ||||
|---|---|---|---|---|---|---|---|---|---|
| CHAL PRO LED1100-830 HF RMB W6 | 9 | 1090 | LED | 0.49 | 96642350 | ||||
| CHAL PRO LED1100-840 HF RMB W6 | 9 | 1100 | LED | 0.49 | 96642351 | ||||
| CHAL PRO LED2000-830 HF RMB W6 | 16 | 1900 | LED | 0.49 | 96642352 | ||||
| CHAL PRO LED2000-840 HF RMB W6 | 16 | 2030 | LED | 0.49 | 96642353 | ||||
| CHAL PRO LED3000-830 HF RMB W6 | 25 | 2900 | LED | 0.49 | 96642354 | ||||
| CHAL PRO LED3000-840 HF RMB W6 | 25 | 3030 | LED | 0.49 | 96642355 |
▼ Chalice Pro productos configurados, IRC 80, reflector mirrorbrite, emergencia
| Descripción | Potencia de la luminaria (W) | Salida lumínica (lm) | Tipo | Peso (kg) | Código SAP | ||||
|---|---|---|---|---|---|---|---|---|---|
| CHAL PRO LED1100-830 HF E3 RMB W6 | 9 | 1090 | LED | 1.51 | 96642362 | ||||
| CHAL PRO LED1100-830 HF E3TX RMB W6 | 9 | 1090 | LED | 1.51 | 96643009 | ||||
| CHAL PRO LED1100-840 HF E3 RMB W6 | 9 | 1100 | LED | 1.51 | 96642363 | ||||
| CHAL PRO LED1100-840 HF E3TX RMB W6 | 9 | 1100 | LED | 1.51 | 96643010 | ||||
| CHAL PRO LED2000-830 HF E3 RMB W6 | 16 | 1900 | LED | 1.51 | 96642364 | ||||
| CHAL PRO LED2000-830 HF E3TX RMB W6 | 16 | 1900 | LED | 1.51 | 96643011 | ||||
| CHAL PRO LED2000-840 HF E3 RMB W6 | 16 | 2030 | LED | 1.51 | 96642365 | ||||
| CHAL PRO LED2000-840 HF E3TX RMB W6 | 16 | 2030 | LED | 1.51 | 96643012 | ||||
| CHAL PRO LED3000-830 HF E3 RMB W6 | 25 | 2900 | LED | 1.51 | 96642366 | ||||
| CHAL PRO LED3000-830 HF E3TX RMB W6 | 25 | 2900 | LED | 1.51 | 96643013 | ||||
| CHAL PRO LED3000-840 HF E3 RMB W6 | 25 | 3030 | LED | 1.51 | 96642367 | ||||
| CHAL PRO LED3000-840 HF E3TX RMB W6 | 25 | 3030 | LED | 1.51 | 96643014 |
▼ Chalice Pro productos configurados, IRC 80, reflector mirrorbrite, regulable, emergencia
| Descripción | Potencia de la luminaria (W) | Salida lumínica (lm) | Tipo | Peso (kg) | Código SAP | ||||
|---|---|---|---|---|---|---|---|---|---|
| CHAL PRO LED1100-830 HFIX E3 RMB W6 | 9 | 1090 | LED | 1.51 | 96642368 | ||||
| CHAL PRO LED1100-830 HFIX E3TX RMB W6 | 9 | 1090 | LED | 1.51 | 96643015 | ||||
| CHAL PRO LED1100-840 HFIX E3 RMB W6 | 9 | 1100 | LED | 1.51 | 96642369 | ||||
| CHAL PRO LED1100-840 HFIX E3TX RMB W6 | 9 | 1100 | LED | 1.51 | 96643016 | ||||
| CHAL PRO LED2000-830 HFIX E3 RMB W6 | 16 | 1900 | LED | 1.51 | 96642370 | ||||
| CHAL PRO LED2000-830 HFIX E3TX RMB W6 | 16 | 1900 | LED | 1.51 | 96643017 | ||||
| CHAL PRO LED2000-840 HFIX E3 RMB W6 | 16 | 2030 | LED | 1.51 | 96642371 | ||||
| CHAL PRO LED2000-840 HFIX E3TX RMB W6 | 16 | 2030 | LED | 1.51 | 96643018 | ||||
| CHAL PRO LED3000-830 HFIX E3 RMB W6 | 25 | 2900 | LED | 1.51 | 96642372 | ||||
| CHAL PRO LED3000-830 HFIX E3TX RMB W6 | 25 | 2900 | LED | 1.51 | 96643019 | ||||
| CHAL PRO LED3000-840 HFIX E3 RMB W6 | 25 | 3030 | LED | 1.51 | 96642373 | ||||
| CHAL PRO LED3000-840 HFIX E3TX RMB W6 | 25 | 3030 | LED | 1.51 | 96643020 |
▼ Chalice Pro productos configurados, IRC 80, reflector satinbrite
| Descripción | Potencia de la luminaria (W) | Salida lumínica (lm) | Tipo | Peso (kg) | Código SAP | ||||
|---|---|---|---|---|---|---|---|---|---|
| CHAL PRO LED1100-830 HF RSB W6 | 9 | 1090 | LED | 0.49 | 96642326 | ||||
| CHAL PRO LED1100-840 HF RSB W6 | 9 | 1100 | LED | 0.49 | 96642327 | ||||
| CHAL PRO LED2000-830 HF RSB W6 | 16 | 1900 | LED | 0.49 | 96642328 | ||||
| CHAL PRO LED2000-840 HF RSB W6 | 16 | 2030 | LED | 0.49 | 96642329 | ||||
| CHAL PRO LED3000-830 HF RSB W6 | 25 | 2900 | LED | 0.49 | 96642330 | ||||
| CHAL PRO LED3000-840 HF RSB W6 | 25 | 3030 | LED | 0.49 | 96642331 |
▼ Chalice Pro productos configurados, IRC 80, reflector satinbrite, emergencia
| Descripción | Potencia de la luminaria (W) | Salida lumínica (lm) | Tipo | Peso (kg) | Código SAP | ||||
|---|---|---|---|---|---|---|---|---|---|
| CHAL PRO LED1100-830 HF E3 RSB W6 | 9 | 1090 | LED | 1.51 | 96642338 | ||||
| CHAL PRO LED1100-830 HF E3TX RSB W6 | 9 | 1090 | LED | 1.51 | 96628066 | ||||
| CHAL PRO LED1100-840 HF E3 RSB W6 | 9 | 1100 | LED | 1.51 | 96642339 | ||||
| CHAL PRO LED1100-840 HF E3TX RSB W6 | 9 | 1100 | LED | 1.51 | 96628067 | ||||
| CHAL PRO LED2000-830 HF E3 RSB W6 | 16 | 1900 | LED | 1.51 | 96642340 | ||||
| CHAL PRO LED2000-830 HF E3TX RSB W6 | 16 | 1900 | LED | 1.51 | 96628068 | ||||
| CHAL PRO LED2000-840 HF E3 RSB W6 | 16 | 2030 | LED | 1.51 | 96642341 | ||||
| CHAL PRO LED2000-840 HF E3TX RSB W6 | 16 | 2030 | LED | 1.51 | 96642901 | ||||
| CHAL PRO LED3000-830 HF E3 RSB W6 | 25 | 2900 | LED | 1.51 | 96642342 | ||||
| CHAL PRO LED3000-830 HF E3TX RSB W6 | 25 | 2900 | LED | 1.51 | 96642902 | ||||
| CHAL PRO LED3000-840 HF E3 RSB W6 | 25 | 3030 | LED | 1.51 | 96642343 | ||||
| CHAL PRO LED3000-840 HF E3TX RSB W6 | 25 | 3030 | LED | 1.51 | 96642903 |
▼ Chalice Pro productos configurados, IRC 80, reflector satinbrite, regulable, emergencia
| Descripción | Potencia de la luminaria (W) | Salida lumínica (lm) | Tipo | Peso (kg) | Código SAP | ||||
|---|---|---|---|---|---|---|---|---|---|
| CHAL PRO LED1100-830 HFIX E3 RSB W6 | 9 | 1090 | LED | 1.51 | 96642344 | ||||
| CHAL PRO LED1100-830 HFIX E3TX RSB W6 | 9 | 1090 | LED | 1.51 | 96642904 | ||||
| CHAL PRO LED1100-840 HFIX E3 RSB W6 | 9 | 1100 | LED | 1.51 | 96642345 | ||||
| CHAL PRO LED1100-840 HFIX E3TX RSB W6 | 9 | 1100 | LED | 1.51 | 96642905 | ||||
| CHAL PRO LED2000-830 HFIX E3 RSB W6 | 16 | 1900 | LED | 1.51 | 96642346 | ||||
| CHAL PRO LED2000-830 HFIX E3TX RSB W6 | 16 | 1900 | LED | 1.51 | 96642906 | ||||
| CHAL PRO LED2000-840 HFIX E3 RSB W6 | 16 | 2030 | LED | 1.51 | 96642347 | ||||
| CHAL PRO LED2000-840 HFIX E3TX RSB W6 | 16 | 2030 | LED | 1.51 | 96642907 | ||||
| CHAL PRO LED3000-830 HFIX E3 RSB W6 | 25 | 2900 | LED | 1.51 | 96642348 | ||||
| CHAL PRO LED3000-830 HFIX E3 RSB WL6 W6 | 25 | 2900 | LED | 1.51 | 92900737 | ||||
| CHAL PRO LED3000-830 HFIX E3TX RSB W6 | 25 | 2900 | LED | 1.51 | 96642908 | ||||
| CHAL PRO LED3000-840 HFIX E3 RSB W6 | 25 | 3030 | LED | 1.51 | 96642349 | ||||
| CHAL PRO LED3000-840 HFIX E3TX RSB W6 | 25 | 3030 | LED | 1.51 | 96642909 |
▼ Chalice Pro accesorios
| Descripción | Peso (kg) | Código SAP | |||||||
|---|---|---|---|---|---|---|---|---|---|
| CHAL 150 FROSTED RING | 0.05 | 96627651 | |||||||
| CHAL 150 HALO RING | 0.17 | 96627650 | |||||||
| CHAL 150 WALLWASHER RMB W6 | 0.17 | 96628054 | |||||||
| CHAL 150 WALLWASHER RSB W6 | 0.17 | 96627652 |
▼ Chalice Pro Accessory
| Descripción | Peso (kg) | Código SAP | |||||||
|---|---|---|---|---|---|---|---|---|---|
| CHAL MSF HOUSING | 1.10 | 96628908 | |||||||
| CHAL MSF MSW1 1500mm | 0.24 | 96238862 |
