Eroa SX
EROA SX is a surface mount product with remote driver designed to create scenes on façade, bridges and monuments
- Available in four lengths with a choice of single colour : 2700K, 3000K, 4000K.
- Designed for clean and discreet surface installation, allowing seamless integration on façades, bridges, and architectural structures.
- Precision-engineered optics delivers continuous and uniform illumination across lengths exceeding 12 metres, ensuring smooth light lines without dark zones or visible transitions.
- Internal optical film and cowl accessory provides superior visual comfort by controlling light spill and reducing glare at the source.
- External drivers to power multiple luminaires, reducing installation costs and simplifying maintenance — ideal for budget-conscious large-scale projects.
- Four types of adjustable brackets offer flexible mounting and fine beam orientation, giving designers the ability to precisely target lighting onto architectural features or structural elements.
Materiales y acabados
Suitable for C5 (standard corrosion class according to ISO 9223 : 2012) without additional coating
Body: extruded aluminium (6063) and end cap in machined aluminium
Enclosure: 6mm toughened glass
External screws: A2 with zinc coating treatment
Finish: BK - RAL9005 ; SI : RAL9022
Instalación y montaje
Mouting on surface possible different bracket :

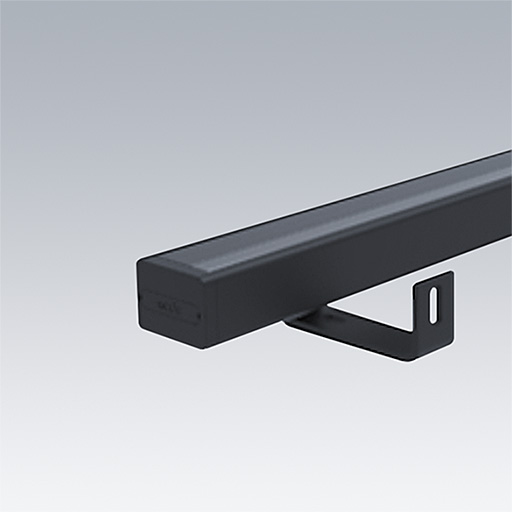

Standard Bracket (15° orientation)

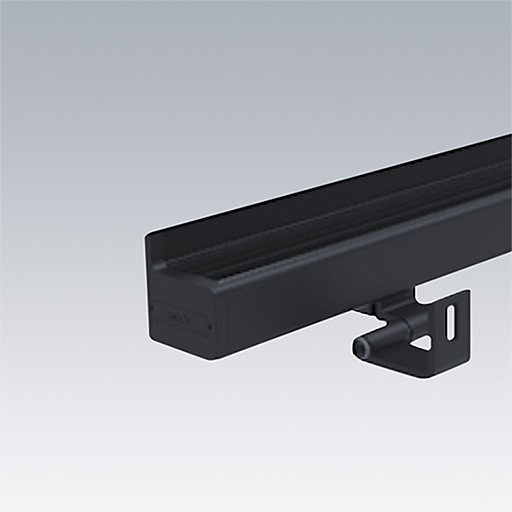

Adjustable Bracket (105° orientation - 60° orientation)
Long Arm Bracket (80° orientation)
Pre-wired with 2m PVC 0,5mm² cable
Remote Driver to be ordered separately
More details on How To Spec Guide
Especificación
To specify state:
Slim linear surface-mounted luminaire, designed for architectural façades, bridges, and monuments. Eroa Sx features a remote driver (sold separately), allowing for a discreet and minimal visual presence on the structure.
Available in four lengths and two finishes, with a choice of static white (2700K, 3000K, 4000K). The luminaire delivers an uniform light projection beyond 12 metres, ideal for large-scale architectural lighting.
Control options include DMX and DALI, depending on the driver selected. An internal anti-glare louvre is available to enhance visual comfort.
Durability: IP66 and IK09 rated, suitable for demanding outdoor environments. Multiple bracket options (standard, adjustable, long-arm) ensure flexible and precise installation.
As Thorn EROA SX
▼ Eroa SX, Driver (mandatory)
| Descripción | Peso (kg) | Código SAP | |||||||
|---|---|---|---|---|---|---|---|---|---|
| DRIVER 1900/CV24/175W/HF | 0.55 | 21903620 | |||||||
| DRIVER 1900/CV24/70W/HF | 0.40 | 21903619 |
