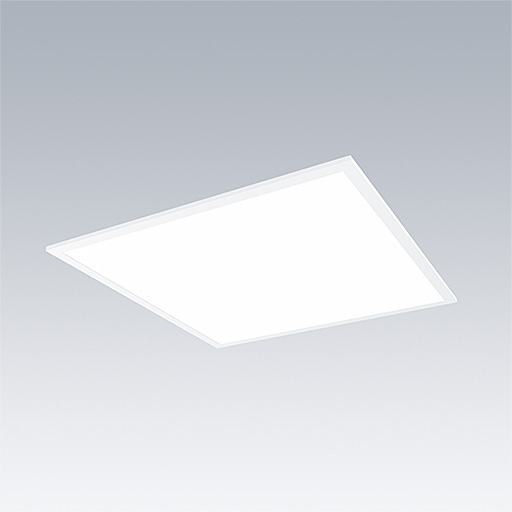

Beta Force
A flexible, efficient and long-lasting solution for applications requiring a higher level of IP protection

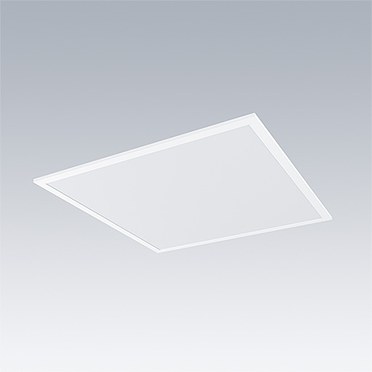

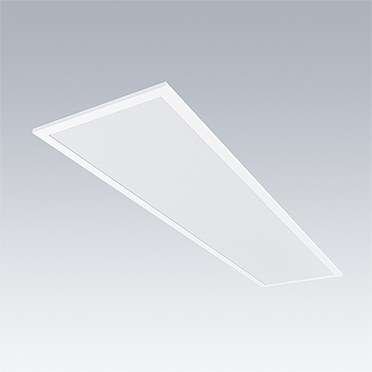

- Available in square and rectangular sizes suitable for recessed modular ceilings and when combined with the required mounting accessory can be installed in plasterboard ceilings.

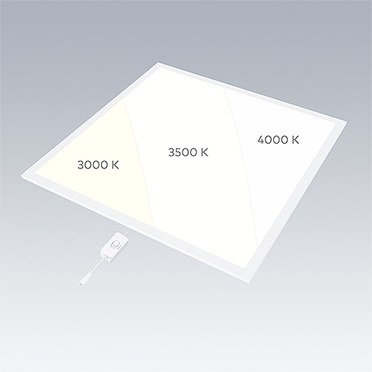

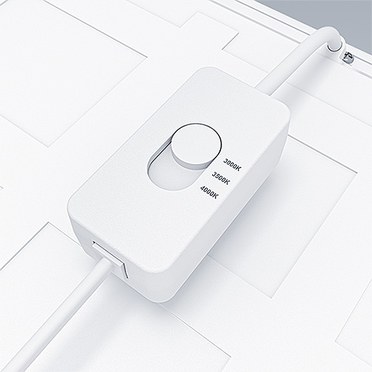

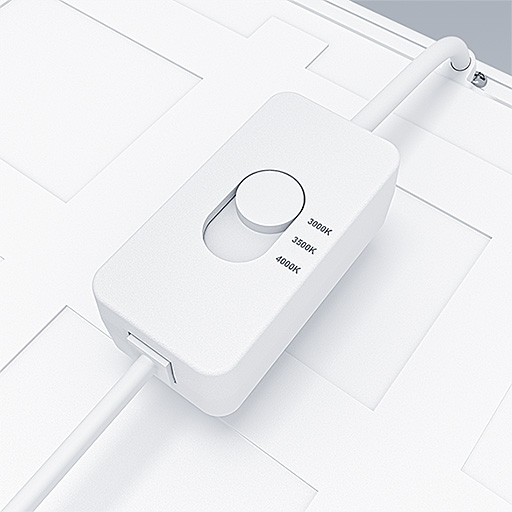

- The correlated colour temperature (CCT) is adjustable via a switch for 3000K, 3500K or 4000K
- Available in CRI80 and CRI90
- High efficiency up to 145lm/W, UGR<19 (3500lm,4100lm) UGR<22 (6000lm)
- Easy to install with twist and lock wiring connectors to the LED driver

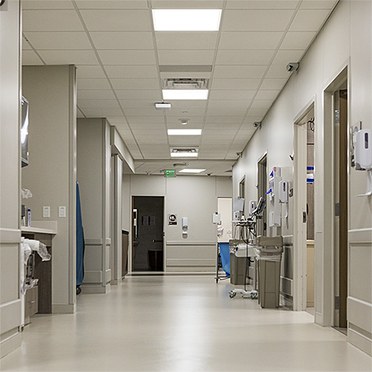

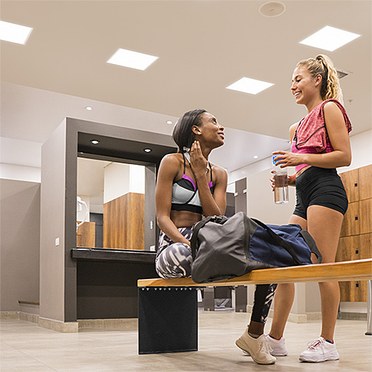

- Beta Force caters for more demanding interior lighting tasks, requiring a higher protection rate (IP65), like shower & changing rooms, hospital corridors, kitchen areas and similar
Materiales y acabados
Frame: White sheet steel
Diffuser: Opal polycarbonate TP(a) rated
Instalación y montaje
Suitable for recessed lay in grid ceilings as standard and with required accessory to allow installation in plasterboard ceilings.
Especificación
To specify state:
An efficient, recessed luminaire with LED light source . IP65 from below and IK08. 3000K, 3500K and 4000K CCT adjustable via a switch. CRI 80 or CRI 90 and a lifetime of 100,000 hours @ L80 Ta 25°C, including high efficiency up to 145lm/W, UGR<19 (3500lm,4100lm) UGR<22 (6000lm), TP(a) rated.
As Thorn BETA FORCE
- New Product
New Product
LumExpress Product
eControl Product

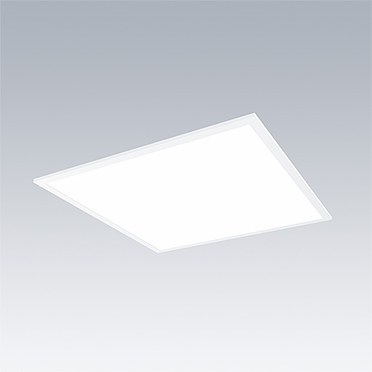

▼ Beta Force
| Descripción | Tipo | Peso (kg) | Código SAP | ||||||
|---|---|---|---|---|---|---|---|---|---|
| BETA FORCE 3500-80 CSW OP HF 3X12 | LED | 2.29 | 96638044 | ||||||
| BETA FORCE 3500-80 CSW OP HF Q600 | LED | 2.26 | 96638041 | ||||||
| BETA FORCE 4100-80 CSW OP HF 3X12 | LED | 2.29 | 96638045 | ||||||
| BETA FORCE 4100-80 CSW OP HF Q600 | LED | 2.26 | 96638042 | ||||||
| BETA FORCE 4100-90 CSW OP HF 3X12 | LED | 2.29 | 96638051 | ||||||
| BETA FORCE 4100-90 CSW OP HF Q600 | LED | 2.26 | 96638050 | ||||||
| BETA FORCE 6000-80 CSW OP HF 3X12 | LED | 2.29 | 96638046 | ||||||
| BETA FORCE 6000-80 CSW OP HF Q600 | LED | 2.26 | 96638043 |
▼ Beta Force accessories
| Descripción | Peso (kg) | Código SAP | |||||||
|---|---|---|---|---|---|---|---|---|---|
| BETA 3 PLASTERBOARD KIT Q600 | 2.10 | 96635030 | |||||||
| BETA 3 PLASTERBOARD KIT Q625 | 2.00 | 96635032 |
