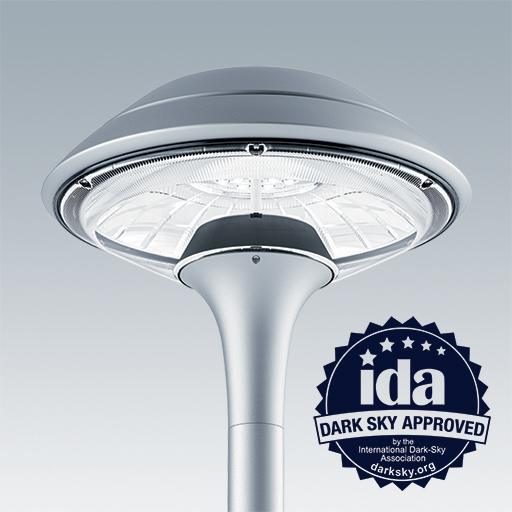

Plurio
Family of post top lanterns with a wide range of styles and performance features, including avoiding obtrusive light
- Multifacetted optic versions give outstanding illuminance and uniformity
- Canopy avoids obtrusive light (ULOR down to 0% with ULOR 0% accessory). Aluminium lampshield (120°) for 'residential' cut-off available
- Glare avoidance (prisms on clear bowl and optional lamp cowl accessory)
- Sealed to IP66 with aluminium canopy
Materials and Finish
Canopies, base and optic: aluminium
Optics: aluminium multifacetted reflector
Bowl: UV stabilized polycarbonate clear with anti glare prisms
Powder coating: silver grey 150 textured (close to RAL 9006), with dark sandy grey 900 (close to RAL 7043) on bi-colour version
Accessories: Lamp cowl, lampshield 120° made of anodized aluminium, ULOR 0% accessory made of aluminium with a matt black finish
Installation and Mounting
Post top mounting. Spigot: international version: Ø60mm, length: 75mm or UK/German version: Ø76mm, length 100mm. Recommended height 3/4m. Dedicated range of columns and brackets. Access to lamp and gear via 3 screws below the bowl. Pre-wired versions available with 4m cable (HO5-VVF or HO7-RNF).
Specification
To specify state:
IP66 post top decorative aluminium lantern for 50-100W high pressure sodium, 26/32/42/57W compact fluorescent, 35/70/100W metal halide lamp, powder coated silver grey finish, with multifacetted aluminium optic/bicolour canopy/dimming system (ZRMU6M with 70/50W HSE gear). Plus IP65 mini photocell (with 76mm version).
As Thorn Plurio
▼ Original canopy, Facetted reflector
▼ Round canopy, Facetted reflector
▼ Accessories
| Description | Wt (kg) | SAP Code | |||||||
|---|---|---|---|---|---|---|---|---|---|
| PLURIO LAMP COWL | 0.30 | 96254522 | |||||||
| PLURIO LAMP SHIELD 120° | 0.50 | 96254524 | |||||||
| PLURIO ULOR 0% | 0.30 | 96254523 |
