Cesar Stroll

  • Cesar Stroll

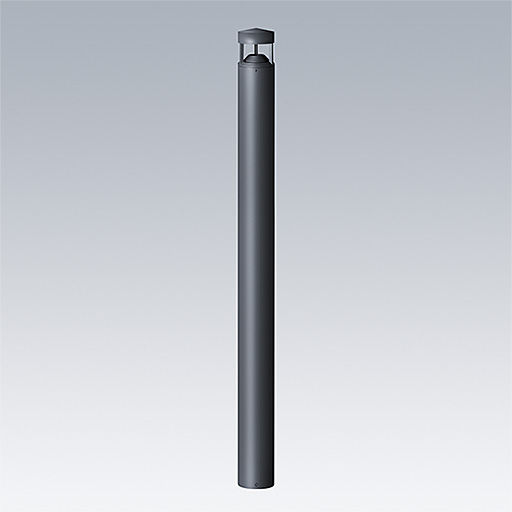

Cesar Stroll Post Top, heritage design with robustness, perfect for pedestrian areas, parks, and city spaces.

  • Robust pole luminaire available in four standard Thorn's colours (grey, anthracite, black, white)
  • El difusor a prueba de vandalismo ofrece una luz suave sin deslumbramiento para más seguridad y bienestar en zonas exteriores
  • Disponible en 2700K, 3000K, 4000K y CRI90
  • Cesar Stroll está disponible con conectividad DALI2 On-board

Materiales y acabados

Die-cast and extruded aluminium housing.
Polycarbonate diffusor.
Stainless steel screws.
Silicone gaskets.
Double Powder Paint process.
Suitable for C3 (standard corrosion class according to ISO 9223 : 2012).

Instalación y montaje

Installation method available :
- Installation on concrete ground with base accessory (96700286 - GY | 96700287 - ANT | 96701174 - WH | 96701175 - BK) (fixing anchors M16 not delivered with product)
- Recessed installation with flange accessory to be ordered separately (96700289).
Delivered pre-wired and with IP68 gel connector.
Maximum cable size : 4x1mm² - 4x1.5mm².

Especificación

To specify state:
A robust circular light column available in four standard colours (grey, anthracite, black and white), ideal for blending into a variety of spaces such as squares, parks and residential areas. Cesar Stroll is also available as a bollard to provide a visual identity for the entire project. Omni-directional distribution for easy signage in parks and squares. Available in 2700K, 3000K and 4000K with a CRI of 90. Column can be fixed to the ground using an accessory (to be ordered separately), or with an accessory (to be ordered separately) to be embedded in concrete. Integrated DALI2 driver.
Robustness: IP65 & IK10.
As Thorn Cesar Stroll

New Product
LumExpress Product
eControl Product

▼ Cesar Stroll

DescripciónPotencia de la luminaria (W)Salida lumínica (lm)   TipoPeso (kg)Código SAP
CESAR STROLL H2500 1L927 S/S HFX ANT351843LED21.3596700265
CESAR STROLL H2500 1L927 S/S HFX BK351843LED21.3596700263
CESAR STROLL H2500 1L927 S/S HFX GY351843LED21.3596700264
CESAR STROLL H2500 1L927 S/S HFX WH351843LED21.3596700262
CESAR STROLL H2500 1L930 S/S HFX ANT351941LED21.3596700273
CESAR STROLL H2500 1L930 S/S HFX BK351941LED21.3596700271
CESAR STROLL H2500 1L930 S/S HFX GY351941LED21.3596700272
CESAR STROLL H2500 1L930 S/S HFX WH351941LED21.3596700270
CESAR STROLL H2500 1L940 S/S HFX ANT352076LED21.3596700269
CESAR STROLL H2500 1L940 S/S HFX GY352076LED21.3596700268
CESAR STROLL H2500 1L940 S/S HFX WH352076LED21.3596700266
CESAR STROLL H25001L940 S/S HFX BK352076LED21.3596700267

▼ Cesar Stroll, accessories

Descripción   Peso (kg)Código SAP
CESAR STRUT FBASE S300 ANT6.8896700287
CESAR STRUT FBASE S300 BK6.8896701175
CESAR STRUT FBASE S300 GY6.8896700286
CESAR STRUT FBASE S300 WH6.8896701174
CESAR STRUT FLANGE H80011.0796700288
