Olsys Street

  • Olsys Street
  • Olsys Street

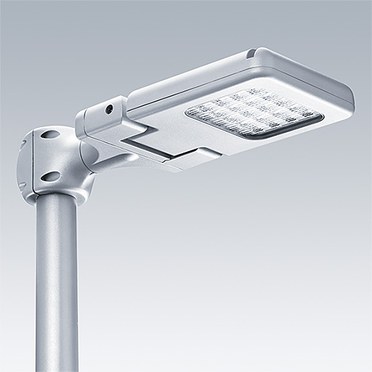

Luminaria LED de calle versátil y discreta que utiliza un vanguardista motor LED para un mejor rendimiento y eficiencia.

  • Un motor LED de tecnología punta que cumple la norma EN13201 y las recomendaciones europeas (ULOR 0 %, por encima de los 70 lm/W en 4000K) que abarca proyectos hasta ME3.
  • Completo con reducción de potencia para disminuir el consumo energético durante la noche.
  • Un coste de propiedad sumamente bajo con un sistema optimizado de administración del calor que permite una vida útil de hasta 80.000 horas (L70, a 25 °C) sin regulación.
  • Discreet design is coordinated with Olsys Area luminaires and available with a wide choice of mounting types and column packages

Materiales y acabados

Body: die-cast aluminium (AS9U), standard corrosion class: C3,
powder coated silver grey 9006 finish
Enclosure: size 1 clear UV stabilised PC
size 2: tempered glass
Optics: size 1 PC, size 2 micro reflectors in highly reflective anodised aluminium
Screws: stainless steel
Brackets and mounting accessories: aluminium

Instalación y montaje

Fitting and mounting accessories delivered sperately.
Product supplied pre-wired with connector
Recommended mounting heights:
Olsys Street 1: 4m
Olsys Street 2 : 6 to 8m
Coordinated columns and brackets: cylindro-conical or curved
Access to gear (replaceable) via 4 screws from the canopy
Suitable for ambient temperature range -30 to 50°C

Especificación

Texto para especificación:
Luminaria urbana LED con estanqueidad de grado IP66 con paquetes LED de 24/45/70/90 W (hasta 7000 Llm), gris plateado con recubrimiento en polvo 9006, sistema de regulación integrado y columnas y soportes decorativos a juego.
Como Olsys Street de Thorn Lighting.

New Product
LumExpress Product
eControl Product

Olsys 1 street

DescripciónPotencia de la luminaria (W)Salida lumínica (lm)   TipoPeso (kg)Código SAP
OLSYS1 12L70 730 CL1 BP5 STR283160LED2.9096633538
OLSYS1 12L70 730 CL2 BP5 STR283160LED2.9096633537
OLSYS1 12L70 740 CL1 BP5 STR283315LED2.9096633536
OLSYS1 12L70 740 CL2 BP5 STR283315LED2.9096633535

Olsys 1 street, mounting accessories

Descripción   Peso (kg)Código SAP
<OLSYS1 MLE 60MA1.2096262297
OLSYS1 BRA 500MM MTP3.9096262300
OLSYS1 BRx2 1000MM MTP6.9096262301
OLSYS1 MLE 47MA1.0096262302
OLSYS1 MTP 60/761.4096262298
OLSYS1 MTP 60/76 x22.1096262299

Olsys 1 street, cylindro-conical columns

Descripción   Peso (kg)Código SAP
<OLSYS COL 4M CCO BRAx2 MPL FAI GRY40.0096262333
<OLSYS COL 4M CCO MPL FAI GRY40.0096262360

Olsys 2 street

DescripciónPotencia de la luminaria (W)Salida lumínica (lm)   TipoPeso (kg)Código SAP
OLSYS2 36L70 730 CL1 BP8 STR789895LED8.7596633550
OLSYS2 36L70 730 CL2 BP8 STR789895LED8.7596633549
OLSYS2 36L70 740 CL1 BP8 STR7810375LED8.7596633548
OLSYS2 36L70 740 CL2 BP8 STR7810375LED8.7596633547

Olsys 2 street, mounting accessories

Descripción   Peso (kg)Código SAP
OLSYS2 BRA 500MM MTP5.3096262306
OLSYS2 BRx2 1000MM MTP10.0096262307
OLSYS2 MLE 47MA2.5096262308
OLSYS2 MLE 60MA2.6096262303
OLSYS2 MTP 60/762.9096262304
OLSYS2 MTP 60/76 x25.0096262305
OLSYS2 MWA STR0.6096267967

Olsys 2 street, cylindro-conical columns

Descripción   Peso (kg)Código SAP
<OLSYS COL 6M CCO BRAx2 MPL FAI GRY92.0096262335
