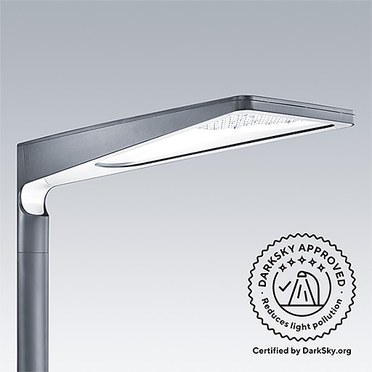

Urba

  • Urba
  • Urba
  • Urba

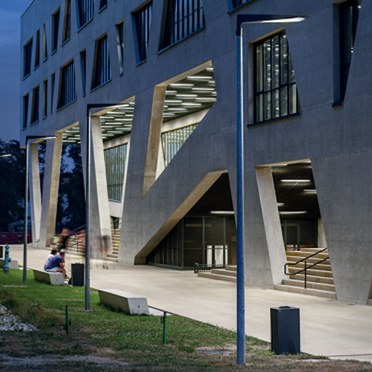

Para sofisticación y confort en la vida urbana

  • Diseñada exclusivamente para Thorn por la mundialmente conocida firma de arquitectos, urbanistas y diseñadores Wilmotte & Industries.
  • Deja una huella exclusiva por el día y la noche gracias a un sistema óptico diseñado con especial atención a la comodidad (G6)
  • Outstanding versatility: 9 optics, 2 sizes, 3 mounting options to fulfill a wide scope of projects
  • Part of the URBA family with Urba Deco and Urba bollard

Materiales y acabados

URBA S body: high quality die cast aluminium EN-AC 44300 with zink flake coated screws. Best resistant against corrosion and compatible with seaside environment without additional coating. URBA L body: die cast aluminium 44600 and zink flake coated screws.
Anthracite grey textured finish (close to RAL 7043)
Glass: tempered flat glass or dichroic flat glass (5mm). Prismatic glass on request
Frame: aluminium - powder polycarbonate, metallised aluminium and varnish
Deflector: ABS anti-UV white (RAL 9016)

Brackets with coordinated columns:
Painted galvanised steel, anthracite grey or black textured finish.
Two diameter conical columns dedicated to Urba post top lantern:
Painted aluminium,anthracite grey or black textured finish

Instalación y montaje

Luminaire: Supplied complete and ready to install, in a single box. Post-top mounting Ø60mm or Ø76mm, spigot length 100mm pre-wired with 8m (Small) or 10m (Large) H07RN-F cable. Side-entry mounting Ø60mm with adjustable tilt angles: 0°, -5°, -10°

Brackets with coordinated columns. Mounting heights for Urba small: 4 to 6m, for Urba Large: 6 to 8m. Columns delivered with anchoring bolts. Aluminium columns (diameters: internal 76mm, external 96mm - internal 60mm and external 81mm) with flange mountings: 200x200mm. Galvanised steel columns with flange mountings: 300x300mm

Especificación

To specify Urba luminaire state:
Highly designed urban street lantern with 2 sizes, 7 mounting options, 3 enclosures, 9 light distributions with 2 dedicated optics to comfort (G6). Highly efficient with R-PEC optic. Side entry and post top mountings, 60mm and 76mm diameters, with tilt adjustments. Wide range of intelligent lighting control solutions from stand alone dimming to remote control.
As Thorn Urba

To specify Urba brackets and columns state:
Wide range of coordinated short and long galvanised steel brackets, diameter 76mm top. Cylindrical conical galvanised steel columns up to 8m. Anthracite grey textured finish. 2 diameter aluminium cylindrical conical columns up to 6m.
As Thorn Urba brackets and columns

New Product
LumExpress Product
eControl Product

Urba S RWET

DescripciónPotencia de la luminaria (W)Salida lumínica (lm)   TipoPeso (kg)Código SAP
URBA S 12L35 RWET ANT BP CL2 8MMTP60 730151801LED10.5096269715
URBA S 12L35 RWET ANT BP CL2 MLE L730151801LED10.5096269552
URBA S 12L50 RWET ANT BP CL2 8MMTP60 730152481LED10.5096269718
URBA S 12L50 RWET ANT BP CL2 MLE L730152481LED10.5096269555
URBA S 12L70 RWET ANT BP CL2 8MMTP60 730153331LED10.5096269721
URBA S 12L70 RWET ANT BP CL2 MLE L730153331LED10.5096269558
URBA S 24L35 RWET ANT BP CL2 8MMTP60 730283594LED10.5096269716
URBA S 24L35 RWET ANT BP CL2 MLE L730283594LED10.5096269553
URBA S 24L50 RWET ANT BP CL2 8MMTP60 730384942LED10.5096269719
URBA S 24L50 RWET ANT BP CL2 MLE L730384942LED10.5096269556
URBA S 24L70 RWET ANT BP CL2 8MMTP60 730536617LED10.5096269722
URBA S 24L70 RWET ANT BP CL2 MLE L730536617LED10.5096269559
URBA S 36L35 RWET ANT BP CL2 8MMTP60 730395370LED10.5096269717
URBA S 36L35 RWET ANT BP CL2 MLE L730395370LED10.5096269554
URBA S 36L50 RWET ANT BP CL2 8MMTP60 730557365LED10.5096269720
URBA S 36L50 RWET ANT BP CL2 MLE L730557365LED10.5096269557
URBA S 36L70 RWET ANT BP CL2 8MMTP60 730779813LED10.5096269723
URBA S 36L70 RWET ANT BP CL2 MLE L730779813LED10.5096269560

Urba S NR

Urba S WR

Urba S WSC

Urba S SC

Urba L RC

DescripciónPotencia de la luminaria (W)Salida lumínica (lm)   TipoPeso (kg)Código SAP
URBA L 48L35 730 RC BP CL2 T60E W10 ANT517251LED17.0096269976
URBA L 48L50 730 RC BP CL2 T60E W10 ANT729953LED17.0096269979
URBA L 48L50 730RC BP CL2 L60D ANT729953LED17.0096269906
URBA L 48L70 730 RC BP CL2 T60E W10 ANT10313282LED17.0096269982
URBA L 48L70 730RC BP CL2 L60D ANT10313282LED17.0096269909
URBA L 60L70 730 RC BP CL2 L60D ANT12816459LED17.0096270056
URBA L 60L70 730 RC BP CL2 T60E W10 ANT12816459LED17.0096270059
URBA L 72L35 730 RC BP CL2 T60E W10 ANT7510829LED17.0096269977
URBA L 72L35 730RC BP CL2 L60D ANT7510829LED17.0096269904
URBA L 72L50 730 RC BP CL2 T60E W10 ANT10914812LED17.0096269980
URBA L 72L50 730RC BP CL2 L60D ANT10914812LED17.0096269907
URBA L 72L70V2 730RC BP CL2 L60D ANT15319644LED17.0096269910
URBA L 72L70V2 RC ANT BP C2 10MMTP6 73015319644LED17.0096269983
URBA L 84L35 730 RC BP CL2 T60E W10 ANT8812612LED17.0096269978
URBA L 84L35 730RC BP CL2 L60D ANT8812612LED17.0096269905
URBA L 84L50 730 RC BP CL2 T60E W10 ANT12717226LED17.0096269981
URBA L 84L50 730RC BP CL2 L60D ANT12717226LED17.0096269908
URBA L 84L70 730 RC BP CL2 T60E W10 ANT17822787LED17.0096269984
URBA L 84L70 730RC BP CL2 L60D ANT17822787LED17.0096269911

Urba L RWET

DescripciónPotencia de la luminaria (W)Salida lumínica (lm)   TipoPeso (kg)Código SAP
URBA L 48L35 730 RWT BP CL2 L60D ANT517169LED17.0096269894
URBA L 48L35 730 RWT BP CL2 T60E W10 ANT517169LED17.0096269967
URBA L 48L50 730 RWT BP CL2 L60D ANT729840LED16.0096269897
URBA L 48L50 730 RWT BP CL2 T60E W10 ANT729840LED17.0096269970
URBA L 48L70 730 RWT BP CL2 L60D ANT10313131LED16.0096269900
URBA L 48L70 730 RWT BP CL2 T60E W10 ANT10313131LED17.0096269973
URBA L 60L70 730 RWT BP CL2 L60D ANT12816272LED16.0096270055
URBA L 60L70 730 RWT BP CL2 T60E W10 ANT12816272LED17.0096270058
URBA L 72L35 730 RWT BP CL2 L60D ANT7510706LED17.0096269895
URBA L 72L35 730 RWT BP CL2 T60E W10 ANT7510706LED17.0096269968
URBA L 72L50 730 RWT BP CL2 L60D ANT10914644LED16.0096269898
URBA L 72L50 730 RWT BP CL2 T60E W10 ANT10914644LED17.0096269971
URBA L 72L70V2 730 RWT BP CL2 L60D ANT15319421LED16.0096269901
URBA L 72L70V2 RWET ANT BP C2 10MMTP6 7315319421LED17.0096269974
URBA L 84L35 730 RWT BP CL2 L60D ANT8812468LED17.0096269896
URBA L 84L35 730 RWT BP CL2 T60E W10 ANT8812468LED17.0096269969
URBA L 84L50 730 RWT BP CL2 L60D ANT12717030LED16.0096269899
URBA L 84L50 730 RWT BP CL2 T60E W10 ANT12717030LED17.0096269972
URBA L 84L50 730 RWT HFX CL2 L60D ANT12717030LED17.0096269988
URBA L 84L70 730 RWT BP CL2 L60D ANT17822528LED17.0096269902
URBA L 84L70 730 RWT BP CL2 T60E W10 ANT17822528LED17.0096269975

Urba L NR

DescripciónPotencia de la luminaria (W)Salida lumínica (lm)   TipoPeso (kg)Código SAP
URBA L 48L35 730 NR BP CL2 L60D ANT516930LED17.0096269885
URBA L 48L35 730 NR BP CL2 T60E W10 ANT516930LED13.7096269958
URBA L 48L50 730 NR BP CL2 L60D ANT729512LED17.0096269888
URBA L 48L50 730 NR BP CL2 T60E W10 ANT729512LED17.0096269961
URBA L 48L70 730 NR BP CL2 L60D ANT10312693LED17.0096269891
URBA L 48L70 730 NR BP CL2 T60E W10 ANT10312693LED17.0096269964
URBA L 60L70 730 NR BP CL2 L60D ANT12815729LED16.0096270054
URBA L 60L70 730 NR BP CL2 T60E W10 ANT12815729LED17.0096270057
URBA L 72L35 730 NR BP CL2 L60D ANT7510349LED17.0096269886
URBA L 72L35 730 NR BP CL2 T60E W10 ANT7510349LED17.0096269959
URBA L 72L50 730 NR BP CL2 L60D ANT10914155LED17.0096269889
URBA L 72L50 730 NR BP CL2 T60E W10 ANT10914155LED17.0096269962
URBA L 72L70V2 730 NR BP CL2 L60D ANT15318772LED17.0096269892
URBA L 72L70V2 NR ANT BP C2 10MMTP6 73015318772LED17.0096269965
URBA L 84L35 730 NR BP CL2 L60D ANT8812052LED17.0096269887
URBA L 84L35 730 NR BP CL2 T60E W10 ANT8812052LED17.0096269960
URBA L 84L35 730 NR BPL CL2 L60D ANT8812052LED17.0096269989
URBA L 84L50 730 NR BP CL2 L60D ANT12716462LED17.0096269890
URBA L 84L50 730 NR BP CL2 T60E W10 ANT12716462LED17.0096269963
URBA L 84L50 730 NR HFA CL2 L60D ANT12716462LED17.0096269987
URBA L 84L70 730 NR BP CL2 L60D ANT17821776LED17.0096269893
URBA L 84L70 730 NR BP CL2 T60E W10 ANT17821776LED17.0096269966
