Voyager Blade 2 / VOYAGER BLADE 2 115 CON E1/3D WH
96637615
▼ Ficha técnica

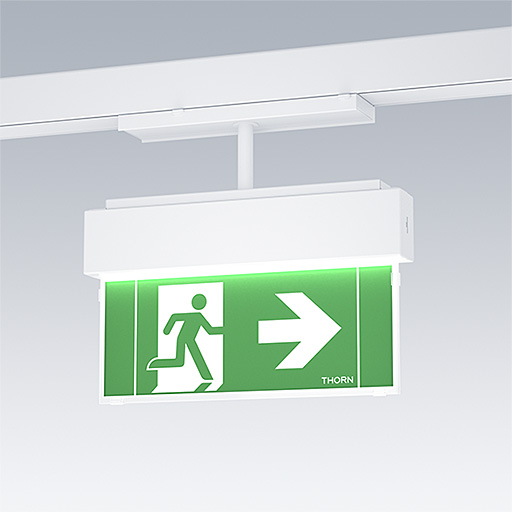

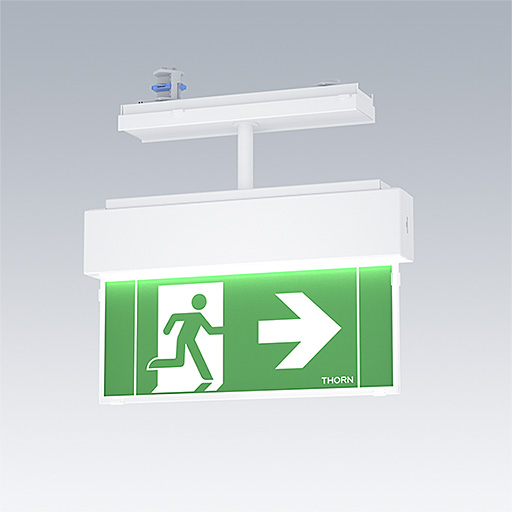

LED safety sign luminaire for tool free mounting on Thorn Contus track system. Sign rotatable and fixable in 45° steps.
Housing made of polycarbonate (PC) (similar to RAL 9016).
Quick fit terminal block, through wiring possible up to 2,5 mm².
Self-contained luminaire with integrated LiFePo4 battery pack. Emergency operation time selectable via jumper for 1h or 3h (default). Maintained (default) or non-maintained operation possible. Centralized monitoring via connected suitable DALI 2 controller, if not connected, automatic test with luminaire status display via status LED.
Supplied with a set of ISO 7010 mountable direction signs (left, right, up, down and blank) for viewing from a maximum distance of 23 m, single or double sided view with a luminance > 500 cd/m² in the white region.
Vin: 220-240V AC +/-10%, 50/60Hz Degree of protection: IP40
Ta=0°C to +40°C Impact strength: IK03
Weight: 1.14 kg Class II electrical
Warranty: Self-contained emergency luminaires rely on long-lasting batteries. Voyager Blade 2's high-tech battery is robust and comes with a three-year guarantee (applicable subject to the terms and conditions of and to the extent as set forth in the manufacturer's guarantee on Thorn products, which shall be applicable analogously and which is available under http://www.thornlighting.com/en/products/5-yearguarantee/5-year-warranty/terms-of-guarantee_en.pdf. The battery guarantee shall not come into effect if the product has been installed later than three(3) months after delivery EXW (Incoterms 2010).
Accessories:
Installation frame for semi recessed luminaire installation.
Cord suspension kit with 2m max.
Surface mount bracket for "Flag" mounting (90° angle to wall).
- LED
- CE
- IK03
- IP40
- Ta = 0 to +40
- UKCA
