Voyager Style
Voyager Style - La luminaria de emergencia ultra plana
- La luz de emergencia Voyager Style de Thorn muestra que las luminarias de emergencia no tienen que ser ni voluminosas ni molestas. Con solo 37mm de grosor y fácil montaje este discreto accesorio encaja a la perfección en cualquier espacio interior.
- Opciones de energía: Tanto si el sistema de iluminación de emergencia se base en luminarias autónomas alimentadas por batería o en un sistema de batería central, Voyager Style cumple las necesidades
- Pulcra y sencilla: La amplia gama de opciones de montaje significa que Voyager Style encaja en cualquier lugar donde se necesite luz de emergencia. La opción de montaje empotrado la hace una opción particularmente discreta
Materiales y acabados
Cuerpo: policarbonato blanco
Difusor: policarbonato transparente
Instalación y montaje
Sin herramientas, montaje en solo click después de encajar base de la carcasa
Especificación
Texto para especificación:
Luminaria de emergencia flexible para distintas posibilidades de montaje que pueden incluso extenderse a través de un adaptador. Sólo 37mm de profundidad de carcasa para un diseño de vanguardia. Versión manual, auto test, controlador de circuito o SET009 (solo suministro central).
Como Voyager Style de Thorn Lighting.
New Product
LumExpress Product
eControl Product
▼ Voyager Style Surface exit sign
Descripción | Peso (kg) | Código SAP | |||||||
---|---|---|---|---|---|---|---|---|---|
VOYAGER STYLE 115 MS E3-S SM-S WH | 0.98 | 96222359 | |||||||
VOYAGER STYLE 115 MS E3T-S SM-S WH | 0.98 | 96222360 | |||||||
VOYAGER STYLE 115 MS ECC SM-S WH | 0.85 | 96222361 | |||||||
VOYAGER STYLE 115 MS ECS SM-S WH | 0.90 | 96222362 | |||||||
VOYAGER STYLE 115 P MS E3D SM-S WH | 0.95 | 96631614 | |||||||
VOYAGER STYLE 115 P MS ECD SM-S WH | 0.75 | 96632896 | |||||||
VOYAGER STYLE 115 P MS ECP SM-S WH | 0.75 | 96632901 | |||||||
VOYAGER STYLE 150 MS E3-S SM-S WH | 1.08 | 96631608 | |||||||
VOYAGER STYLE 150 MS E3T-S SM-S WH | 1.08 | 96631609 | |||||||
VOYAGER STYLE 150 MS ECC SM-S WH | 1.02 | 96631611 | |||||||
VOYAGER STYLE 150 MS ECS SM-S WH | 1.01 | 96631612 | |||||||
VOYAGER STYLE 150 P MS E3D SM-S WH | 1.30 | 96631610 | |||||||
VOYAGER STYLE 150 P MS ECD SM-S WH | 1.13 | 96632898 | |||||||
VOYAGER STYLE 150 P MS ECP SM-S WH | 1.16 | 96632903 |

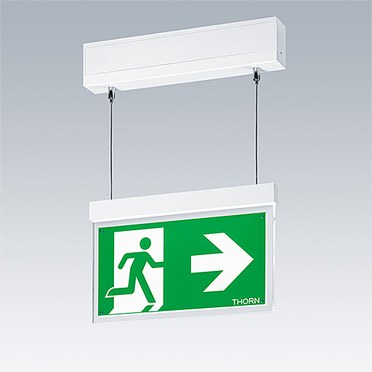

▼ Voyager Style Suspended exit sign
Descripción | Peso (kg) | Código SAP | |||||||
---|---|---|---|---|---|---|---|---|---|
VOYAGER STYLE 115 MS-WF15 E3-S SM-S WH | 1.03 | 96222363 | |||||||
VOYAGER STYLE 115 MS-WF15 E3T-S SM-S WH | 1.03 | 96222364 | |||||||
VOYAGER STYLE 115 MS-WF15 ECC SM-S WH | 0.96 | 96222365 | |||||||
VOYAGER STYLE 115 MS-WF15 ECS SM-S WH | 1.01 | 96222366 | |||||||
VOYAGER STYLE 115 P MS-WF15 E3D SM-S WH | 0.95 | 96631615 | |||||||
VOYAGER STYLE 115 P MS-WF15 ECD SM-S WH | 0.79 | 96632897 | |||||||
VOYAGER STYLE 115 P MS-WF15 ECP SM-S WH | 0.79 | 96632902 | |||||||
VOYAGER STYLE 150 MS-WF15 E3-S SM-S WH | 1.44 | 96222367 | |||||||
VOYAGER STYLE 150 MS-WF15 E3T-S SM-S WH | 1.44 | 96222368 | |||||||
VOYAGER STYLE 150 MS-WF15 ECC SM-S WH | 1.37 | 96222369 | |||||||
VOYAGER STYLE 150 MS-WF15 ECS SM-S WH | 1.39 | 96222370 | |||||||
VOYAGER STYLE 150 P MS-WF15 E3D SM-S WH | 1.27 | 96631616 | |||||||
VOYAGER STYLE 150 P MS-WF15 ECD SM-S WH | 1.15 | 96632899 | |||||||
VOYAGER STYLE 150 P MS-WF15 ECP SM-S WH | 1.15 | 96632904 |
▼ Voyager Style Accessories
Descripción | Peso (kg) | Código SAP | |||||||
---|---|---|---|---|---|---|---|---|---|
VOYAGER STYLE / ONE MSC-CORD25 | 0.20 | 96631617 | |||||||
VOYAGER STYLE / ONE MSC-R05 | 0.13 | 96631618 | |||||||
VOYAGER STYLE 115 BP GRID | 0.94 | 96631619 | |||||||
VOYAGER STYLE 115 CCS | 1.35 | 96222696 | |||||||
VOYAGER STYLE 115 FSR WH | 0.17 | 96222371 | |||||||
VOYAGER STYLE 115 MS90° | 0.27 | 96631622 | |||||||
VOYAGER STYLE 150 / ONE BP GRID | 1.64 | 96631620 | |||||||
VOYAGER STYLE 150 / ONE MS90° | 0.33 | 96631621 | |||||||
VOYAGER STYLE 150 CCS | 1.50 | 96222697 | |||||||
VOYAGER STYLE 150 FSR WH | 0.11 | 96631613 |
▼ Voyager Style Spares
Descripción | Peso (kg) | Código SAP | |||||||
---|---|---|---|---|---|---|---|---|---|
Voyager Style 115 Ballast ECD | 0.06 | 59010999 | |||||||
Voyager Style 115 Ballast ECP | 0.06 | 59011002 | |||||||
Voyager Style 150 Ballast ECD | 0.05 | 59011000 | |||||||
Voyager Style 150 Ballast ECP | 0.06 | 59011003 | |||||||
Voyager Style ACCU 3h | 0.10 | 59009397 | |||||||
Voyager Style Ballast E3 | 0.04 | 59009398 | |||||||
Voyager Style Ballast E3T | 0.04 | 59009399 | |||||||
Voyager Style Ballast ECC | 0.03 | 59009400 | |||||||
Voyager Style Ballast ECS | 0.04 | 59010379 |
