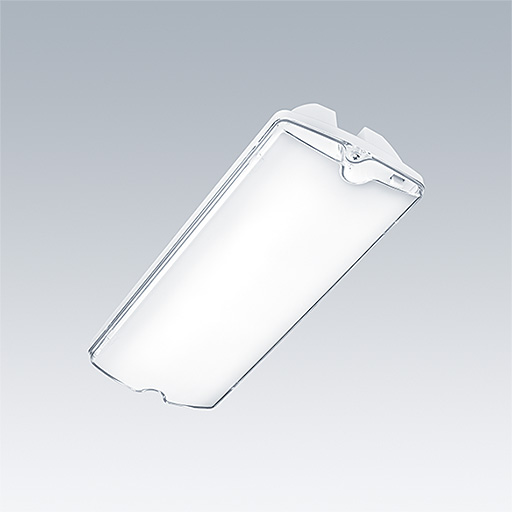

Voyager Solid
El aplique que hace de la iluminación de emergencia algo sencillo
- Disponible en versiones pequeña y grande con un diseño constante, el Voyager Solid ofrece una distribución de la luz uniforme y homogénea en varios rangos de potencia
- Entradas intercambiables: Los pictogramas de Voyager Solid están protegidos dentro de la luminaria para evitar los pictogramas en adhesivos en donde se crean burbujas de aire o inclusiones de polvo.
- Fácil de instalar y configurar, Voyager Solid puede usarse como luminaria oculta o en superficie en paredes y techos. El accesorio es IP65 para uso en varias ubicaciones.
- Opciones de testeo: Voyager Solid ofrece una variedad de opciones de prueba ya que está disponible para pruebas manuales, Selftest y Selftest/Addressable Test.
Materiales y acabados
Carcasa: policarbonato blanco
Difusor: policarbonato transparente
Instalación y montaje
Instalaciones fáciles con bisagras electrónicas y gran espacio de cableado.
Especificación
Texto para especificación:
Luminaria de emergencia Self contained para montaje en techo y pared. Montaje semi empotrado con adaptador opcional. Orderable exchangeable inlets para el uso como señal de emergencia. Test manual, SelfTest o Self/Addressable Test capability
Como Voyager Solid de Thorn Lighting
- New Product
New Product
LumExpress Product
eControl Product
▼ Voyager Solid
Descripción | Tipo | Peso (kg) | Código SAP | ||||||
---|---|---|---|---|---|---|---|---|---|
<VOYAGER SOLID MS E3D-S WH | LED | 0.60 | 96634865 | ||||||
VOYAGER SOLID MS E3BC WH | LED | 0.75 | 96635563 | ||||||
VOYAGER SOLID MS ECD WH | LED | 0.80 | 96637555 | ||||||
VOYAGER SOLID P MS ECP WH | LED | 0.50 | 96637556 | ||||||
VOYAGER SOLID P MS ELP WH | LED | 0.50 | 96637557 |
▼ Voyager Solid L
Descripción | Tipo | Peso (kg) | Código SAP | ||||||
---|---|---|---|---|---|---|---|---|---|
VOYAGER SOLID L MS E3BC WH | LED | 1.05 | 96635564 | ||||||
VOYAGER SOLID L MS E3D-S WH | LED | 0.90 | 96629766 | ||||||
VOYAGER SOLID L MS ECD WH | LED | 0.80 | 96637559 | ||||||
VOYAGER SOLID L P MS ECP WH | LED | 0.80 | 96637560 | ||||||
VOYAGER SOLID L P MS ELP WH | LED | 0.80 | 96637561 |
▼ Voyager Solid L HP
Descripción | Tipo | Peso (kg) | Código SAP | ||||||
---|---|---|---|---|---|---|---|---|---|
VOYAGER SOLID L MS HP ECD WH | LED | 1.10 | 96634939 | ||||||
Voyager SOLID L P MS HP E3BC WH | LED | 1.60 | 96635565 | ||||||
VOYAGER SOLID L P MS HP E3D WH | LED | 1.45 | 96634938 | ||||||
VOYAGER SOLID L P MS HP ECP WH | LED | 1.05 | 96634940 |
▼ Voyager Solid MS
Descripción | Tipo | Peso (kg) | Código SAP | ||||||
---|---|---|---|---|---|---|---|---|---|
VOYAGER SOLID L MS E1/3-S WH | LED | 0.77 | 96637633 | ||||||
VOYAGER SOLID L MS E1/3T-S WH | LED | 0.77 | 96637634 | ||||||
VOYAGER SOLID MS E1/3-S WH | LED | 0.50 | 96637629 | ||||||
VOYAGER SOLID MS E1/3T-S WH | LED | 0.50 | 96637630 |
▼ Voyager Solid Pictogramas
Descripción | Peso (kg) | Código SAP | |||||||
---|---|---|---|---|---|---|---|---|---|
VOYAGER SOLID 115 MSC SM-S | 0.70 | 96635027 | |||||||
VOYAGER SOLID L LEGENDSET SM-1S | 0.03 | 96629768 | |||||||
VOYAGER SOLID LEGENDSET SM-1S | 0.03 | 96634866 |
▼ Voyager Solid Accessorios
Descripción | Peso (kg) | Código SAP | |||||||
---|---|---|---|---|---|---|---|---|---|
VOYAGER SOLID FSR WH | 0.54 | 96629769 | |||||||
VOYAGER SOLID L FSR WH | 0.63 | 96629770 |
▼ Voyager Solid Spares
Descripción | Peso (kg) | Código SAP | |||||||
---|---|---|---|---|---|---|---|---|---|
<EMpower PROset E3D 2X10/166MA | 0.00 | 59011540 | |||||||
EMpower PROset ECP 2X10/166MA | 0.07 | 59011539 | |||||||
EMpowerLED E3D 1/350mA | 0.07 | 59012020 | |||||||
VOYAGER SOLID ACCU LiFePo4 1/3h | 0.05 | 59013700 | |||||||
Voyager Solid ACCU NIMH 2,2AH | 0.16 | 59009287 | |||||||
VOYAGER SOLID ACCU NiMH E3(T) | 0.08 | 59013782 | |||||||
VOYAGER SOLID E1/3 CONVERTER | 0.06 | 59013705 | |||||||
VOYAGER SOLID E1/3T CONVERTER | 0.06 | 59013706 | |||||||
Voyager Solid HP ACCU NIMH 4AH | 0.15 | 59011596 | |||||||
Voyager Solid HP Converter ECD | 0.10 | 59011597 | |||||||
VOYAGER SOLID L ACCU NiMH E3(T) | 0.08 | 59013783 |
