Cesar Stroll Bollard

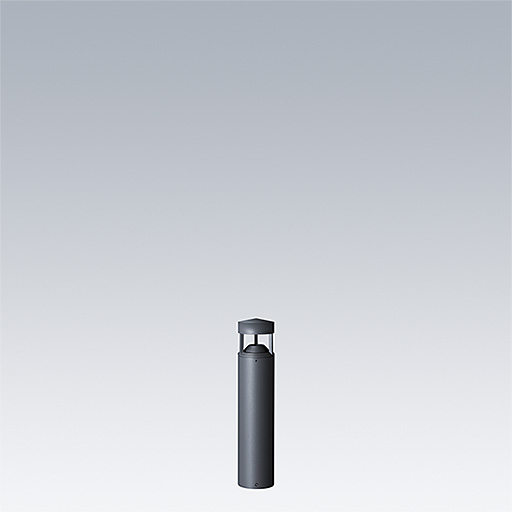

Cesar Stroll Bollard combines heritage design with performance, perfect for pedestrian areas, parks, and city spaces
- Robust bollard available in four standard Thorn's colours (grey, anthracite, black, white)
- El difusor de policarbonato a prueba de vandalismo ofrece una luz suave sin deslumbramiento para más seguridad y bienestar en zonas exteriores
- Disponible en 2700K, 3000K, 4000K y CRI90
- Cesar Stroll B está disponible con conectividad DALI2 On-board
Materiales y acabados
Die-cast and extruded aluminium housing.
Polycarbonate diffusor.
Stainless steel screws.
Silicone gaskets.
Double Powder Paint process.
Suitable for C3 (standard corrosion class according to ISO 9223 : 2012).
Instalación y montaje
Installation method available:
- Installation on concrete ground (fixing anchors M8 not delivered with product)
- Recessed installation with flange accessory to be ordered separately (96700289)
Delivered pre-wired and with IP68 gel connector.
Maximum cable size : 4x1mm² - 4x1.5mm².
Especificación
To specify state:
A robust circular bollard available in four standard colours (grey, anthracite, black and white), ideal for blending into a variety of spaces such as squares, parks and residential areas. Cesar Stroll is also available as an illuminated column to provide a visual identity for the entire project. Omni-directional distribution for easy signage in parks and squares. Available in 2700K, 3000K and 4000K with a CRI of 90. Bollard can be fixed to the ground or to an accessory (to be ordered separately) to be embedded in concrete. Integrated DALI2 driver.
Robustness: IP65 & IK10.
As Thorn Cesar Stroll Bollard
▼ Cesar Stroll B
| Descripción | Potencia de la luminaria (W) | Salida lumínica (lm) | Tipo | Peso (kg) | Código SAP | ||||
|---|---|---|---|---|---|---|---|---|---|
| CESAR STROLL B H950 1L927 S/S HFX ANT | 35 | 1843 | LED | 10.61 | 96700253 | ||||
| CESAR STROLL B H950 1L927 S/S HFX BK | 35 | 1843 | LED | 10.61 | 96700251 | ||||
| CESAR STROLL B H950 1L927 S/S HFX GY | 35 | 1843 | LED | 10.61 | 96700252 | ||||
| CESAR STROLL B H950 1L927 S/S HFX WH | 35 | 1843 | LED | 10.61 | 96700250 | ||||
| CESAR STROLL B H950 1L930 S/S HFX ANT | 35 | 1941 | LED | 10.61 | 96700261 | ||||
| CESAR STROLL B H950 1L930 S/S HFX BK | 35 | 1941 | LED | 10.61 | 96700259 | ||||
| CESAR STROLL B H950 1L930 S/S HFX GY | 35 | 1941 | LED | 10.61 | 96700260 | ||||
| CESAR STROLL B H950 1L930 S/S HFX WH | 35 | 1941 | LED | 10.61 | 96700258 | ||||
| CESAR STROLL B H950 1L940 S/S HFX ANT | 35 | 2076 | LED | 10.61 | 96700257 | ||||
| CESAR STROLL B H950 1L940 S/S HFX BK | 35 | 2076 | LED | 10.61 | 96700255 | ||||
| CESAR STROLL B H950 1L940 S/S HFX GY | 35 | 2076 | LED | 10.61 | 96700256 | ||||
| CESAR STROLL B H950 1L940 S/S HFX WH | 35 | 2076 | LED | 10.61 | 96700254 |
▼ Cesar Stroll B, accessories
| Descripción | Peso (kg) | Código SAP | |||||||
|---|---|---|---|---|---|---|---|---|---|
| CESAR STROLL B FLANGE H165 | 1.23 | 96700289 |
