Plurio Retrofit kit
Solución para saneamientos con una potencia luminosa superior, ahorro energético y responsabilidad ecológica
- Excelente rendimiento de hasta 4.900 lúmenes, disponible con dos modelos de óptica: rotación simétrica y extensiva (calle), perfectamente apta para sustituir a la tecnología convencional de High Intensity Discharge (HID).
- Impresionante eficiencia de hasta 140lm/W garantiza un flujo luminoso óptimo y al mismo tiempo la reducción del consumo de energía en hasta un 70%.
- With a ULOR of <0.5%, the Plurio retrofit kit helps to protect the nighttime environment by minimizing upward light spill.
- Prolongue la duración de sus instalaciones Plurio cambiando a LED para garantizar así un rendimiento fiable y duradero.
- With just simple steps, you can quickly convert your existing non-LED system to a powerful LED solution, all on-site with minimal downtime.

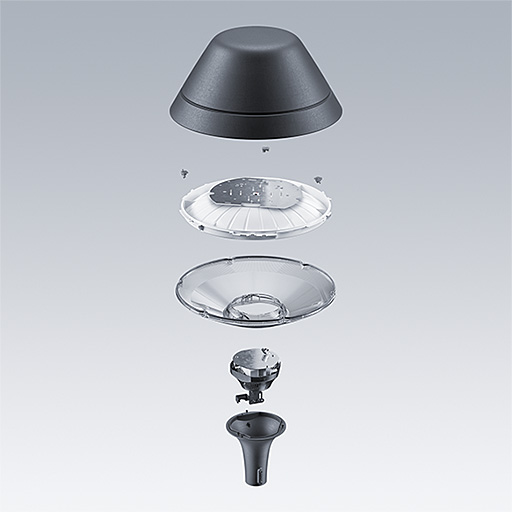

Materiales y acabados
Internal white highly reflective ABS plastic reflector and cable pipe.
High reflective stainless steel adapted mirror.
LEDs PCB and PMMA cluster.
Internal plastic fixing bracket and stainless steel screw.
Galvanized steel gear tray with plastic bracket box and driver.
Instalación y montaje
Montaje en la parte superior del mástil a una altura recomendada de 3-4m.

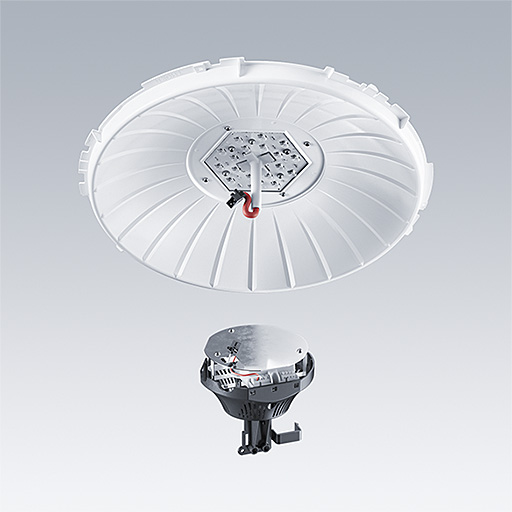

Set de reequipamiento LED para cambiar la fuente de luz convencional HID y el balasto en Plurio.
Acceso a la fuente de luz y al balasto mediante tornillos por debajo de la pantalla de la luminaria.
Especificación
To specify state:
Available in Electrical Class II. DALI-2 dimmable on-board driver variant.
Bi-Power variant: Pre-set 3hrs before midnight, 5hrs after midnight, 50% reduction level.
Surge protection up to 6kV by driver. CCT: 727 / 730. RS and WST optical options.
As Thorn Plurio Retrofit Kit
