Diffusalux

  • Diffusalux

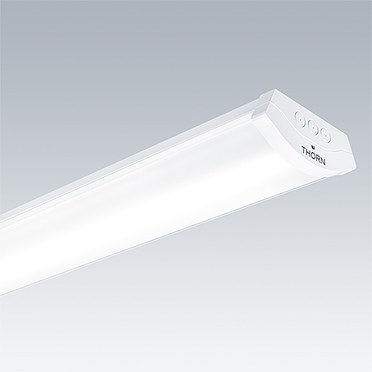

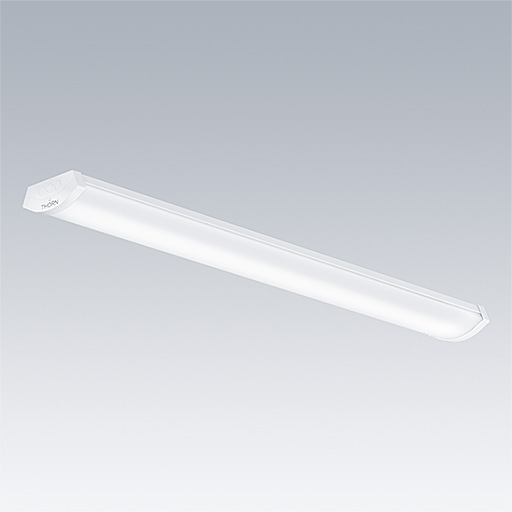

A range of curved profile linear fluorescent luminaires with clear or opal diffusers for surface or suspended mounting

  • Light control is enhanced through curved shape prism diffuser
  • Surface, suspended or conduit mounting possible
  • All versions balanced
  • Choice of T16 or T26 lamps

Materials and Finish

Body: white prepainted steel
End caps: polycarbonate
Diffuser: precision extruded clear prismatic or opal styrene (polycarbonate for emergency
versions)

Installation and Mounting

Cable entry holes (Ø21.5mm) in the centre of the back spine. Optional cable entry through each end cap. Fitting supplied with end cap sealing grommets and ‘quick-fix’ horseshoe sliding washers for direct screw fixing to surface. 5 x 2 x 2.5mm² piano key terminal block suitable for easy and quick looping.
UK: Standard BESA fixing possible.

Specification

To specify state:
High performance surface mounted fluorescent luminaire with curved opal/clear prismatic diffuser retained along its length, employing high frequency/emergency gear for single/twin T26/T16 lamps for general interior lighting.
As Thorn Diffusalux.

New Product
LumExpress Product
eControl Product

Diffusalux T16 (T5)

Description   TypeSocketWt (kg)SAP Code
DIFFUSALUX 1X28W HF PS CL L000FDHG53.4096206016
DIFFUSALUX 1X28W HF PS CL L840FDHG53.4096535877
DIFFUSALUX 1X28W HF PS OP L000FDHG53.4096206017
DIFFUSALUX 1X28W HF PS OP L840FDHG53.4096535878
DIFFUSALUX 1X35W HF PS CL L000FDHG54.2096206022
DIFFUSALUX 1X35W HF PS CL L840FDHG54.2096535879
DIFFUSALUX 1X35W HF PS OP L000FDHG54.2096206023
DIFFUSALUX 1X35W HF PS OP L840FDHG54.2096535880
DIFFUSALUX 1X49W HF PS CL L000FDHG54.2096206030
DIFFUSALUX 1X49W HF PS CL L840FDHG54.6096535883
DIFFUSALUX 1X49W HF PS OP L000FDHG54.2096206031
DIFFUSALUX 1X49W HF PS OP L840FDHG54.2096535884
DIFFUSALUX 2X28W HF PS CL L000FDHG53.6096206018
DIFFUSALUX 2X28W HF PS CL L840FDHG53.6096535889
DIFFUSALUX 2X28W HF PS OP L000FDHG53.6096206019
DIFFUSALUX 2X28W HF PS OP L840FDHG53.6096535890
DIFFUSALUX 2X35W HF PS CL L000FDHG54.4096206026
DIFFUSALUX 2X35W HF PS CL L840FDHG54.4096535891
DIFFUSALUX 2X35W HF PS OP L000FDHG54.4096206027
DIFFUSALUX 2X35W HF PS OP L840FDHG54.4096535892
DIFFUSALUX 2X49W HF PS CL L000FDHG54.4096206034
DIFFUSALUX 2X49W HF PS CL L840FDHG54.6096535895
DIFFUSALUX 2X49W HF PS OP L000FDHG54.4096206035
DIFFUSALUX 2X49W HF PS OP L840FDHG54.4096535896

Diffusalux T16 (T5) Emergency

Diffusalux T16 IP40

Diffusalux T26 (T8)

Description   TypeSocketWt (kg)SAP Code
DIFFUSALUX 1X36W HF PS CL L000FDG133.5096206038
DIFFUSALUX 1X36W HF PS CL L840FDG133.5096535881
DIFFUSALUX 1X36W HF PS OP L000FDG133.5096206039
DIFFUSALUX 1X36W HF PS OP L840FDG133.5096535882
DIFFUSALUX 1X58W HF PS CL L000FDG134.3096206046
DIFFUSALUX 1X58W HF PS CL L840FDG134.3096535885
DIFFUSALUX 1X58W HF PS OP L000FDG134.3096206047
DIFFUSALUX 1X58W HF PS OP L840FDG134.3096535886
DIFFUSALUX 1X70W HF PS CL L000FDG134.6096206054
DIFFUSALUX 1X70W HF PS CL L840FDG134.6096535887
DIFFUSALUX 1X70W HF PS OP L000FDG134.6096206055
DIFFUSALUX 1X70W HF PS OP L840FDG134.6096535888
DIFFUSALUX 2X36W HF PS CL L000FDG133.7096206042
DIFFUSALUX 2X36W HF PS CL L840FDG134.7096535893
DIFFUSALUX 2X36W HF PS OP L000FDG133.7096206043
DIFFUSALUX 2X36W HF PS OP L840FDG133.7096535894
DIFFUSALUX 2X58W HF PS CL L000FDG134.5096206050
DIFFUSALUX 2X58W HF PS CL L840FDG134.5096535897
DIFFUSALUX 2X58W HF PS OP L000FDG134.5096206051
DIFFUSALUX 2X58W HF PS OP L840FDG134.5096535898
DIFFUSALUX 2X70W HF PS CL L000FDG134.7096206058
DIFFUSALUX 2X70W HF PS CL L840FDG134.7096535899
DIFFUSALUX 2X70W HF PS OP L840FDG134.7096535900

Diffusalux T26 (T8) Emergency

Description   TypeSocketWt (kg)SAP Code
DIFFUSALUX 1X36W HF PC CL E3 L000FDG135.6096206036
DIFFUSALUX 1X36W HF PC CL E3 L840FDG135.6096535903
DIFFUSALUX 1X36W HF PC OP E3 L000FDG135.6096206037
DIFFUSALUX 1X36W HF PC OP E3 L840FDG135.6096239731
DIFFUSALUX 1X58W HF PC CL E3 L000FDG136.2096206044
DIFFUSALUX 1X58W HF PC CL E3 L840FDG136.2096535906
DIFFUSALUX 1X58W HF PC OP E3 L000FDG136.2096206045
DIFFUSALUX 1X58W HF PC OP E3 L840FDG136.2096535907
DIFFUSALUX 1X70W HF PC CL E3 L000FDG136.5096206052
DIFFUSALUX 1X70W HF PC CL E3 L840FDG136.5096535908
DIFFUSALUX 1X70W HF PC OP E3 L000FDG136.5096206053
DIFFUSALUX 1X70W HF PC OP E3 L840FDG136.5096239732
DIFFUSALUX 2X36W HF PC CL E3 L000FDG135.8096206040
DIFFUSALUX 2X36W HF PC CL E3 L840FDG135.8096535911
DIFFUSALUX 2X36W HF PC OP E3 L000FDG135.8096206041
DIFFUSALUX 2X36W HF PC OP E3 L840FDG135.8096239733
DIFFUSALUX 2X58W HF PC CL E3 L000FDG136.5096206048
DIFFUSALUX 2X58W HF PC CL E3 L840FDG136.5096535914
DIFFUSALUX 2X58W HF PC OP E3 L000FDG136.5096206049
DIFFUSALUX 2X58W HF PC OP E3 L840FDG136.5096239734
DIFFUSALUX 2X70W HF PC CL E3 L000FDG136.6096206056
DIFFUSALUX 2X70W HF PC CL E3 L840FDG136.6096535915
DIFFUSALUX 2X70W HF PC OP E3 L000FDG136.6096206057
DIFFUSALUX 2X70W HF PC OP E3 L840FDG136.6096239735

Diffusalux Accessories

Description   Wt (kg)SAP Code
Lock-Set (2 pce)0.0496004393
WIRE SUSPENSION KIT 1,5M0.1596204619
