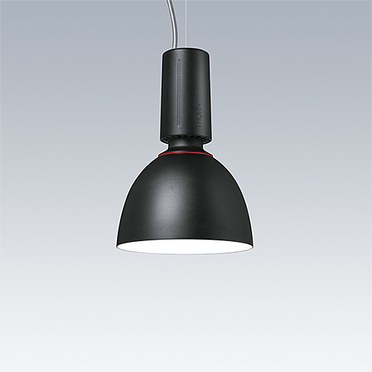

Glacier II
Luminaria decorativa colgante LED moderna y eficiente con paquetes de alta intensidad luminosa
- Luminaria decorativa de alto rendimiento (91-124lm/W) que ofrece una alternativa eficiente a los colgantes HID tradicionales (hasta 150W)
- Disponible en dos tamaños y dos colores
- Una selección de 4 reflectores para adaptarse a muchas aplicaciones distintas.
- Embellecedor de techo con el mismo diseño para completar el diseño final.
- Compatibilidad con troncales Contus mediante un accesorio adaptador opcional
Materiales y acabados
Carcasa: aluminio fundido con acabado gris satinado.
Reflector: prismático policarbonato, prismático cristal, cristal opalino o aluminio centrifugado en gris.
Cable de suspensión: acero trenzado.
Embellecedor de techo (debe pedirse por separado): aluminio fundido con acabado gris satinado y plástico blanco.
Adaptador Contus (se pide por separado): acero prepintado en rollo, blanco (similar a RAL9016)
Instalación y montaje
Suspensión: un cable de suspensión de 2,5 m con bloqueo rápido ajustable (suministrado). Longitud similar de un cable trenzado de silicona retardante de llama preinstalado 5x0,75 mm² (6x0,75 mm² para E3). Opción de embellecedor de techo (debe pedirse por separado). Bloque terminal 2x5x2,5 mm².
Canal Contus: utilizando el accesorio adaptador Contus (se pide por separado).
Especificación
Texto para especificación:
Una luminaria LED colgante de gran tamaño con carcasa metálica de aluminio fundido suspendida de un solo cable. Con reflector prismático de policarbonato, prismático de cristal, cristal opalino o aluminio centrifugado en gris. Salida de lúmenes de 3000 a 9500 lúmenes, eficacia 76-107 lm/W, IRC>80.
Como Glacier II LED de Thorn Lighting.
▼ Glacier II, aluminium reflector
▼ Glacier II, aluminium reflector, basicDIM
Descripción | Potencia de la luminaria (W) | Salida lumínica (lm) | Tipo | Peso (kg) | Código SAP | ||||
---|---|---|---|---|---|---|---|---|---|
GLAC2 L LED2 7800-830 BC EC BK AL BK | 72 | 7550 | LED | 4.80 | 96632150 | ||||
GLAC2 L LED2 7800-830 BC EC GY AL GY | 72 | 7550 | LED | 4.80 | 96632151 | ||||
GLAC2 L LED2 7800-840 BC EC BK AL BK | 72 | 7800 | LED | 4.80 | 96632152 | ||||
GLAC2 L LED2 7800-840 BC EC GY AL GY | 72 | 7800 | LED | 4.80 | 96632153 | ||||
GLAC2 L LED3 3000-830 BC EC BK AL BK | 27 | 2800 | LED | 4.80 | 96632142 | ||||
GLAC2 L LED3 3000-830 BC EC GY AL GY | 27 | 2800 | LED | 4.80 | 96632143 | ||||
GLAC2 L LED3 3000-840 BC EC BK AL BK | 27 | 2900 | LED | 4.80 | 96632144 | ||||
GLAC2 L LED3 3000-840 BC EC GY AL GY | 27 | 2900 | LED | 4.80 | 96632145 | ||||
GLAC2 L LED3 5000-830 BC EC BK AL BK | 45 | 4800 | LED | 4.80 | 96632146 | ||||
GLAC2 L LED3 5000-830 BC EC GY AL GY | 45 | 4800 | LED | 4.80 | 96632147 | ||||
GLAC2 L LED3 5000-840 BC EC BK AL BK | 45 | 5000 | LED | 4.80 | 96632148 | ||||
GLAC2 L LED3 5000-840 BC EC GY AL GY | 45 | 5000 | LED | 4.80 | 96632149 |
▼ Glacier II, prismatic glass reflector
Descripción | Potencia de la luminaria (W) | Salida lumínica (lm) | Tipo | Peso (kg) | Código SAP | ||||
---|---|---|---|---|---|---|---|---|---|
GLAC2 L LED2 9500-830 HFIX EC BK GL PR | 72 | 9200 | LED | 6.80 | 96632417 | ||||
GLAC2 L LED2 9500-830 HFIX EC GY GL PR | 72 | 9200 | LED | 6.80 | 96632418 | ||||
GLAC2 L LED2 9500-840 HFIX EC BK GL PR | 72 | 9500 | LED | 6.80 | 96632419 | ||||
GLAC2 L LED2 9500-840 HFIX EC GY GL PR | 72 | 9500 | LED | 6.80 | 96632420 | ||||
GLAC2 L LED3 3500-830 HFIX EC BK GL PR | 27 | 3400 | LED | 6.80 | 96632409 | ||||
GLAC2 L LED3 3500-830 HFIX EC GY GL PR | 27 | 3400 | LED | 6.80 | 96632410 | ||||
GLAC2 L LED3 3500-840 HFIX EC BK GL PR | 27 | 3500 | LED | 6.80 | 96632411 | ||||
GLAC2 L LED3 3500-840 HFIX EC GY GL PR | 27 | 3500 | LED | 6.80 | 96632412 | ||||
GLAC2 L LED3 6000-830 HFIX EC BK GL PR | 45 | 5750 | LED | 6.80 | 96632413 | ||||
GLAC2 L LED3 6000-830 HFIX EC GY GL PR | 45 | 5750 | LED | 6.80 | 96632414 | ||||
GLAC2 L LED3 6000-840 HFIX EC BK GL PR | 45 | 6000 | LED | 6.80 | 96632415 | ||||
GLAC2 L LED3 6000-840 HFIX EC GY GL PR | 45 | 6000 | LED | 6.80 | 96632416 |
▼ Glacier II, reflector de vidrio prismático, basicDIM
Descripción | Potencia de la luminaria (W) | Salida lumínica (lm) | Tipo | Peso (kg) | Código SAP | ||||
---|---|---|---|---|---|---|---|---|---|
GLAC2 L LED2 9500-830 BC EC BK GL PR | 72 | 9200 | LED | 6.80 | 96632162 | ||||
GLAC2 L LED2 9500-830 BC EC GY GL PR | 72 | 9200 | LED | 6.80 | 96632163 | ||||
GLAC2 L LED2 9500-840 BC EC BK GL PR | 72 | 9500 | LED | 6.80 | 96632164 | ||||
GLAC2 L LED2 9500-840 BC EC GY GL PR | 72 | 9500 | LED | 6.80 | 96632165 | ||||
GLAC2 L LED3 3500-830 BC EC BK GL PR | 27 | 3400 | LED | 6.80 | 96632154 | ||||
GLAC2 L LED3 3500-830 BC EC GY GL PR | 27 | 3400 | LED | 6.80 | 96632155 | ||||
GLAC2 L LED3 3500-840 BC EC BK GL PR | 27 | 3500 | LED | 6.80 | 96632156 | ||||
GLAC2 L LED3 3500-840 BC EC GY GL PR | 27 | 3500 | LED | 6.80 | 96632157 | ||||
GLAC2 L LED3 6000-830 BC EC BK GL PR | 45 | 5750 | LED | 6.80 | 96632158 | ||||
GLAC2 L LED3 6000-830 BC EC GY GL PR | 45 | 5750 | LED | 6.80 | 96632159 | ||||
GLAC2 L LED3 6000-840 BC EC BK GL PR | 45 | 6000 | LED | 6.80 | 96632160 | ||||
GLAC2 L LED3 6000-840 BC EC GY GL PR | 45 | 6000 | LED | 6.80 | 96632161 |
▼ Glacier II, opal glass reflector
▼ Glacier II, opal glass reflector, basicDIM
Descripción | Potencia de la luminaria (W) | Salida lumínica (lm) | Tipo | Peso (kg) | Código SAP | ||||
---|---|---|---|---|---|---|---|---|---|
GLAC2 L LED2 9400-830 BC EC BK GL OP | 72 | 9100 | LED | 6.50 | 96632174 | ||||
GLAC2 L LED2 9400-830 BC EC GY GL OP | 72 | 9100 | LED | 6.50 | 96632175 | ||||
GLAC2 L LED2 9400-840 BC EC BK GL OP | 72 | 9400 | LED | 6.50 | 96632176 | ||||
GLAC2 L LED2 9400-840 BC EC GY GL OP | 72 | 9400 | LED | 6.50 | 96632177 | ||||
GLAC2 L LED3 3500-830 BC EC BK GL OP | 27 | 3450 | LED | 6.50 | 96632166 | ||||
GLAC2 L LED3 3500-830 BC EC GY GL OP | 27 | 3450 | LED | 6.50 | 96632167 | ||||
GLAC2 L LED3 3500-840 BC EC BK GL OP | 27 | 3550 | LED | 6.50 | 96632168 | ||||
GLAC2 L LED3 3500-840 BC EC GY GL OP | 27 | 3550 | LED | 6.50 | 96632169 | ||||
GLAC2 L LED3 6000-830 BC EC BK GL OP | 45 | 5850 | LED | 6.50 | 96632170 | ||||
GLAC2 L LED3 6000-830 BC EC GY GL OP | 45 | 5850 | LED | 6.50 | 96632171 | ||||
GLAC2 L LED3 6000-840 BC EC BK GL OP | 45 | 6050 | LED | 6.50 | 96632172 | ||||
GLAC2 L LED3 6000-840 BC EC GY GL OP | 45 | 6050 | LED | 6.50 | 96632173 |
▼ Glacier II, prismatic polycarbonate reflector
Descripción | Potencia de la luminaria (W) | Salida lumínica (lm) | Tipo | Peso (kg) | Código SAP | ||||
---|---|---|---|---|---|---|---|---|---|
GLAC2 L LED2 9300-830 HFIX EC BK PC PR | 72 | 9000 | LED | 5.00 | 96632441 | ||||
GLAC2 L LED2 9300-830 HFIX EC GY PC PR | 72 | 9000 | LED | 5.00 | 96632442 | ||||
GLAC2 L LED2 9300-840 HFIX EC BK PC PR | 72 | 9300 | LED | 5.00 | 96632443 | ||||
GLAC2 L LED2 9300-840 HFIX EC GY PC PR | 72 | 9300 | LED | 5.00 | 96632444 | ||||
GLAC2 L LED3 3500-830 HFIX EC BK PC PR | 27 | 3400 | LED | 5.00 | 96632433 | ||||
GLAC2 L LED3 3500-830 HFIX EC GY PC PR | 27 | 3400 | LED | 5.00 | 96632434 | ||||
GLAC2 L LED3 3500-840 HFIX EC BK PC PR | 27 | 3500 | LED | 5.00 | 96632435 | ||||
GLAC2 L LED3 3500-840 HFIX EC GY PC PR | 27 | 3500 | LED | 5.00 | 96632436 | ||||
GLAC2 L LED3 6000-830 HFIX EC BK PC PR | 45 | 5700 | LED | 5.00 | 96632437 | ||||
GLAC2 L LED3 6000-830 HFIX EC GY PC PR | 45 | 5700 | LED | 5.00 | 96632438 | ||||
GLAC2 L LED3 6000-840 HFIX EC BK PC PR | 45 | 5950 | LED | 5.00 | 96632439 | ||||
GLAC2 L LED3 6000-840 HFIX EC GY PC PR | 45 | 5950 | LED | 5.00 | 96632440 |
▼ Glacier II, prismatic polycarbonate reflector, basicDIM
Descripción | Potencia de la luminaria (W) | Salida lumínica (lm) | Tipo | Peso (kg) | Código SAP | ||||
---|---|---|---|---|---|---|---|---|---|
GLAC2 L LED2 9300-830 BC EC BK PC PR | 72 | 9000 | LED | 5.00 | 96632186 | ||||
GLAC2 L LED2 9300-830 BC EC GY PC PR | 72 | 9000 | LED | 5.00 | 96632187 | ||||
GLAC2 L LED2 9300-840 BC EC BK PC PR | 72 | 9300 | LED | 5.00 | 96632188 | ||||
GLAC2 L LED2 9300-840 BC EC GY PC PR | 72 | 9300 | LED | 5.00 | 96632189 | ||||
GLAC2 L LED3 3500-830 BC EC BK PC PR | 27 | 3400 | LED | 5.00 | 96632178 | ||||
GLAC2 L LED3 3500-830 BC EC GY PC PR | 27 | 3400 | LED | 5.00 | 96632179 | ||||
GLAC2 L LED3 3500-840 BC EC BK PC PR | 27 | 3500 | LED | 5.00 | 96632180 | ||||
GLAC2 L LED3 3500-840 BC EC GY PC PR | 27 | 3500 | LED | 5.00 | 96632181 | ||||
GLAC2 L LED3 6000-830 BC EC BK PC PR | 45 | 5700 | LED | 5.00 | 96632182 | ||||
GLAC2 L LED3 6000-830 BC EC GY PC PR | 45 | 5700 | LED | 5.00 | 96632183 | ||||
GLAC2 L LED3 6000-840 BC EC BK PC PR | 45 | 5950 | LED | 5.00 | 96632184 | ||||
GLAC2 L LED3 6000-840 BC EC GY PC PR | 45 | 5950 | LED | 5.00 | 96632185 |
▼ Glacier II, emergency, aluminium reflector
▼ Glacier II, emergency, aluminium reflector, basicDIM
Descripción | Potencia de la luminaria (W) | Salida lumínica (lm) | Tipo | Peso (kg) | Código SAP | ||||
---|---|---|---|---|---|---|---|---|---|
GLAC2 L LED3 3000-830 BC E3 BK AL BK | 27 | 2800 | LED | 5.10 | 96632190 | ||||
GLAC2 L LED3 3000-830 BC E3 GY AL GY | 27 | 2800 | LED | 5.10 | 96632191 | ||||
GLAC2 L LED3 3000-840 BC E3 BK AL BK | 27 | 2900 | LED | 5.10 | 96632192 | ||||
GLAC2 L LED3 3000-840 BC E3 GY AL GY | 27 | 2900 | LED | 5.10 | 96632193 | ||||
GLAC2 L LED3 5000-830 BC E3 BK AL BK | 45 | 4800 | LED | 5.10 | 96632194 | ||||
GLAC2 L LED3 5000-830 BC E3 GY AL GY | 45 | 4800 | LED | 5.10 | 96632195 | ||||
GLAC2 L LED3 5000-840 BC E3 BK AL BK | 45 | 5000 | LED | 5.10 | 96632196 | ||||
GLAC2 L LED3 5000-840 BC E3 GY AL GY | 45 | 5000 | LED | 5.10 | 96632197 |
▼ Glacier II, emergency, prismatic glass reflector
▼ Glacier II, emergency, prismatic glass reflector, basicDIM
Descripción | Potencia de la luminaria (W) | Salida lumínica (lm) | Tipo | Peso (kg) | Código SAP | ||||
---|---|---|---|---|---|---|---|---|---|
GLAC2 L LED3 3500-830 BC E3 BK GL PR | 27 | 3400 | LED | 7.10 | 96632198 | ||||
GLAC2 L LED3 3500-830 BC E3 GY GL PR | 27 | 3400 | LED | 7.10 | 96632199 | ||||
GLAC2 L LED3 3500-840 BC E3 BK GL PR | 27 | 3500 | LED | 7.10 | 96632200 | ||||
GLAC2 L LED3 3500-840 BC E3 GY GL PR | 27 | 3500 | LED | 7.10 | 96632201 | ||||
GLAC2 L LED3 6000-830 BC E3 BK GL PR | 45 | 5750 | LED | 7.10 | 96632202 | ||||
GLAC2 L LED3 6000-830 BC E3 GY GL PR | 45 | 5750 | LED | 7.10 | 96632203 | ||||
GLAC2 L LED3 6000-840 BC E3 BK GL PR | 45 | 6000 | LED | 7.10 | 96632204 | ||||
GLAC2 L LED3 6000-840 BC E3 GY GL PR | 45 | 6000 | LED | 7.10 | 96632205 |
▼ Glacier II, emergency, prismatic polycarbonate reflector
▼ Glacier II, emergency, prismatic polycarbonate reflector, basicDIM
Descripción | Potencia de la luminaria (W) | Salida lumínica (lm) | Tipo | Peso (kg) | Código SAP | ||||
---|---|---|---|---|---|---|---|---|---|
GLAC2 L LED3 3500-830 BC E3 BK PC PR | 27 | 3400 | LED | 5.30 | 96632206 | ||||
GLAC2 L LED3 3500-830 BC E3 GY PC PR | 27 | 3400 | LED | 5.30 | 96632207 | ||||
GLAC2 L LED3 3500-840 BC E3 BK PC PR | 27 | 3500 | LED | 5.30 | 96632208 | ||||
GLAC2 L LED3 3500-840 BC E3 GY PC PR | 27 | 3500 | LED | 5.30 | 96632209 | ||||
GLAC2 L LED3 6000-830 BC E3 BK PC PR | 45 | 5700 | LED | 5.30 | 96632210 | ||||
GLAC2 L LED3 6000-830 BC E3 GY PC PR | 45 | 5700 | LED | 5.30 | 96632211 | ||||
GLAC2 L LED3 6000-840 BC E3 BK PC PR | 45 | 5950 | LED | 5.30 | 96632212 | ||||
GLAC2 L LED3 6000-840 BC E3 GY PC PR | 45 | 5950 | LED | 5.30 | 96632213 |
▼ Glacier II accesorios
Descripción | Peso (kg) | Código SAP | |||||||
---|---|---|---|---|---|---|---|---|---|
GLAC2 HFIX BK CONT ADAPT | 0.77 | 96637018 | |||||||
GLAC2 HFIX WH CONT ADAPT | 0.77 | 96637129 | |||||||
THORN CEILING ROSE BK BK | 0.50 | 96632738 | |||||||
THORN CEILING ROSE BK WH | 0.50 | 96629782 | |||||||
THORN CEILING ROSE GY GY | 0.50 | 96632740 | |||||||
THORN CEILING ROSE GY WH | 0.50 | 96205307 | |||||||
THORN CEILING ROSE WH WH | 0.50 | 96632739 |
