College 2

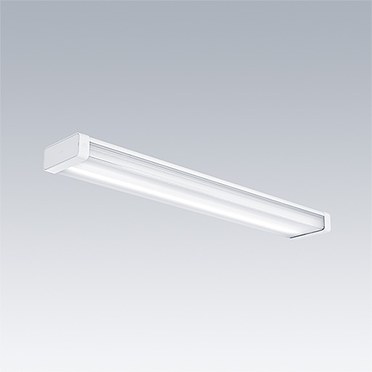

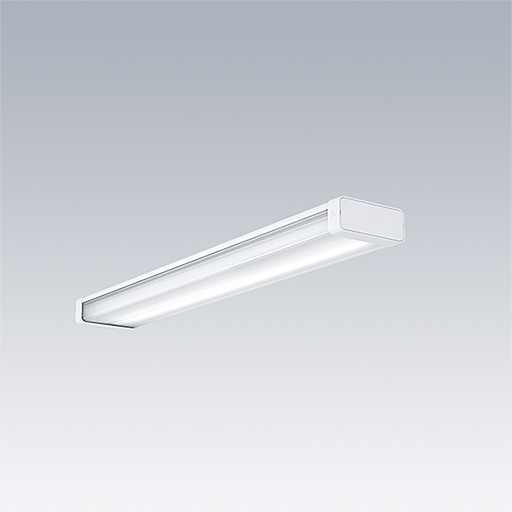

Moderna serie de luminarias LED lineales prismáticas de alto rendimiento para montaje adosado, suspendido en línea continua y en carril portante

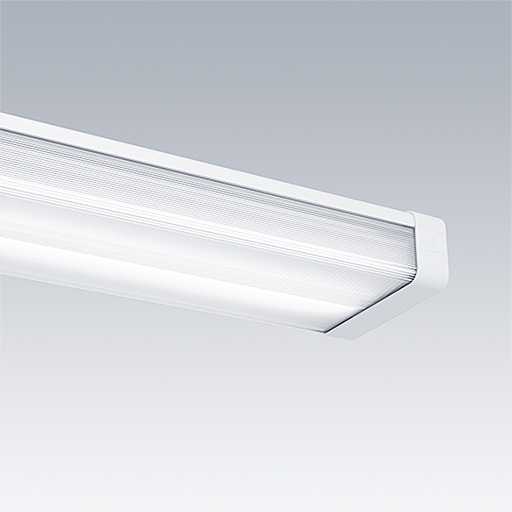

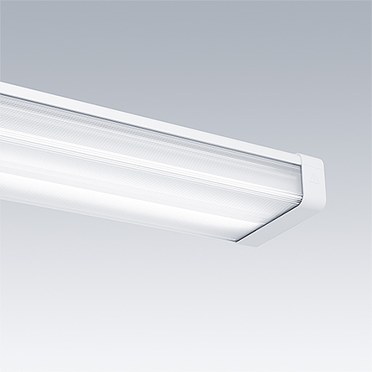

- LED con óptica primaria y lámina tras un difusor de policarbonato estriado resistente a los golpes, control de la iluminación con precisión y buena resistencia al impacto
- El difusor está sujeto por un sistema de seguridad con espiga y una tapa final encajable (patente en tramitación) y puede ser asegurado por tornillos ocultos, para una mayor seguridad contra el vandalismo y los golpes.
- Removable hinged geartray (patent applied for) allowing quick & safe installation / wiring, with ease of access for future maintenance or upgrade (body of luminaire can remain in place)
- Unique patent pending hidden connector (article code 96800051 ordered separately) enabling luminaires to be mounted in continuous rows either end to end or with infill panels (ordered separately, see accessories) to suit the space.
- Surtido completo de sensores Casambi inalámbricos y cableados para DALI2 y opciones de control para más flexibilidad en el control de la iluminación y mayor ahorro energético
- Versions adapted for mounting onto Contus track available which can be mounted straight out of the box within seconds
Materiales y acabados
Body and gear tray: white galvanised prepainted steel.

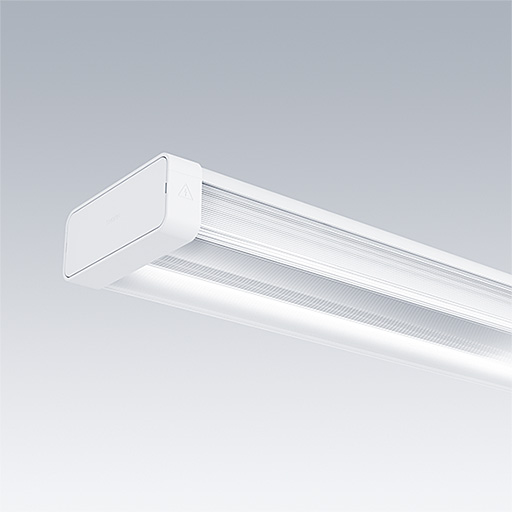

End caps: polycarbonate.
Diffuser: precision extruded prismatic polycarbonate.
Contus adapter: pre-coated roll form steel, white (similar to RAL9016).
Instalación y montaje
Four cable entry holes in the back of the spine and optional cable/conduit entry through each end cap (All suitable for M20 glands/conduit)
Fitting supplied with sealing grommets and 'quick-fix' horseshoe sliding washers for direct screw fixing to surface.
Standard BESA fixings provided in spine at 600mm centres.

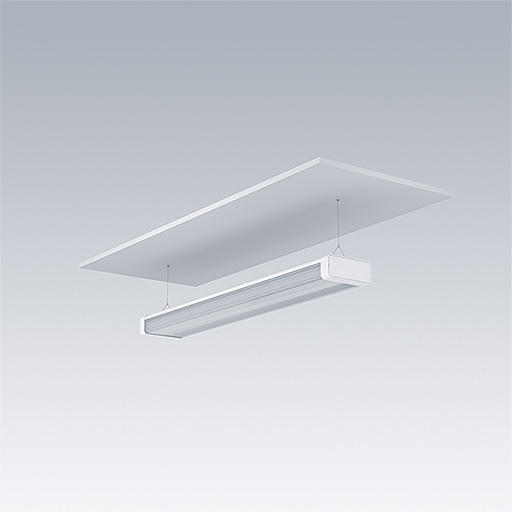

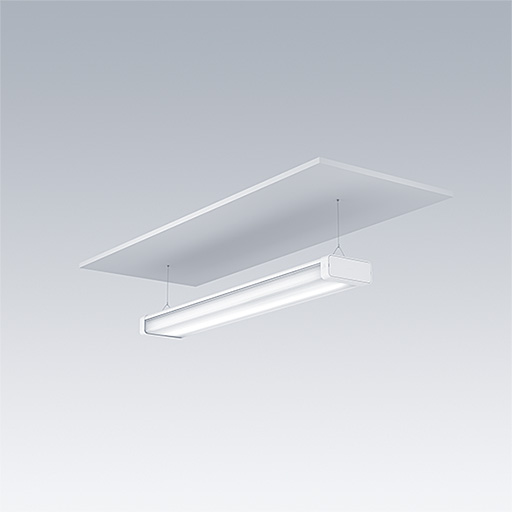

Can be suspended using the optional suspension kit (article code 96800050 ordered separately).
Can be mounted using suitable M12 rod or threaded bar (supplied by others) in conjunction with the brackets and screws from the suspension kit (article code 96800050 ordered separately).
Can be connected to other luminaires and infill panels using the optional continuous row connector kit (article code 96800051 ordered separately).
Loop in/out wiring is possible with provided 2 x 2.5mm² piano key terminal blocks (no. of ways dependent on version ordered).
Contus track adapted versions come pre-assembled, ready to fit quickly and easily with twist & lock mechanical/electrical connections.
Especificación
To specify state:
IP44 IK05 LED Linear luminaire with Bi-Lens primary optic and Quad Linear prismatic diffuser that gives precise light control and good impact resistance, complete with interlocking 2 piece body and hidden fixing screws for safety, security & aesthetics. Mounting options of surface, BESA, suspended and Contus track. Continuous runs possible with injection moulded connector kit either directly end to end or with optional infill panels without visible brackets. Hinged removable geartray for quick, safe installation and ease of access for future maintenance or upgrade.
As Thorn College 2.
